iOS雷达图 iOS RadarChart实现

iOS雷达图 iOS RadarChart实现

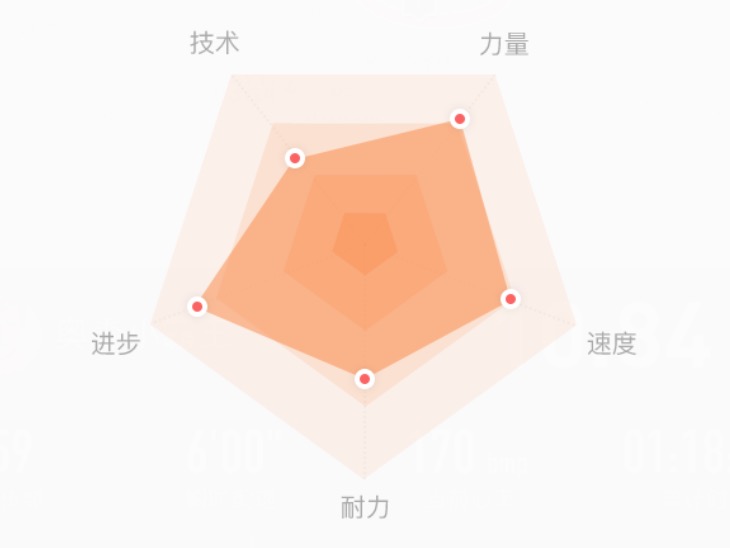

实现效果


刚拿到设计稿的时候大概看了一眼,当时心里想着放张背景图,然后计算下相应点的坐标,在最上面画一层就OK了,其实一开始实现的时候也确实是这么做的,然后我就日了狗了,发现设计稿上多层五边形的间隔不是相等的,也就是说继续按照之前的想法进行实现就要计算出每层顶点的坐标,那样的话代码估计会被坐标值霸屏了。好吧,推倒重来。

一层一层的分析这个需求,首先是五边形的绘制,我创建了一个UIBezierPath的category。具体的代码如下,其中第一个方法是用来画各顶点不规律的五边形的,而第二个方法是用来画那几个背景五边形,两个方法中的length都指的的中心点到各顶点的距离,第三个方法则是用来将距离转换成具体坐标。

 + (CGPathRef)drawPentagonWithCenter:(CGPoint)center Length:(double)length {     NSArray *lengths = [NSArray arrayWithObjects:@(length),@(length),@(length),@(length),@(length), nil];     return [self drawPentagonWithCenter:center LengthArray:lengths]; }  + (CGPathRef)drawPentagonWithCenter:(CGPoint)center LengthArray:(NSArray *)lengths {     NSArray *coordinates = [self converCoordinateFromLength:lengths Center:center];      UIBezierPath *bezierPath = [UIBezierPath bezierPath];     for (int i = 0; i < [coordinates count]; i++) {         CGPoint point = [[coordinates objectAtIndex:i] CGPointValue];         if (i == 0) {             [bezierPath moveToPoint:point];         } else {             [bezierPath addLineToPoint:point];         }     }     [bezierPath closePath];      return bezierPath.CGPath; }  + (NSArray *)converCoordinateFromLength:(NSArray *)lengthArray Center:(CGPoint)center {     NSMutableArray *coordinateArray = [NSMutableArray array];     for (int i = 0; i < [lengthArray count] ; i++) {         double length = [[lengthArray objectAtIndex:i] doubleValue];         CGPoint point = CGPointZero;         if (i == 0) {             point =  CGPointMake(center.x - length * sin(M_PI / 5.0),                                  center.y - length * cos(M_PI / 5.0));         } else if (i == 1) {             point = CGPointMake(center.x + length * sin(M_PI / 5.0),                                 center.y - length * cos(M_PI / 5.0));         } else if (i == 2) {             point = CGPointMake(center.x + length * cos(M_PI / 10.0),                                 center.y + length * sin(M_PI / 10.0));         } else if (i == 3) {             point = CGPointMake(center.x,                                 center.y +length);         } else {             point = CGPointMake(center.x - length * cos(M_PI / 10.0),                                 center.y + length * sin(M_PI / 10.0));         }          [coordinateArray addObject:[NSValue valueWithCGPoint:point]];     }     return coordinateArray; }

至于最顶层数据五边形的动画绘制,我做了两种实现(因为他们也还没确定用哪个),额,怎么解释两者的区别呢,一种是按照与各边成比例的速度放大,一种是按照各边同样的速度放大。两种方法我都放上来:

 #pragma mark - 描绘分数五边行  按照与各边成比例的速度放大 - (void)drawScorePentagonV {     NSArray *lengthsArray = [self convertLengthsFromScore:self.scoresArray];     CABasicAnimation *pathAnimation = [CABasicAnimation animationWithKeyPath:@"path"];     pathAnimation.fromValue = (id)[UIBezierPath drawPentagonWithCenter:CGPointMake(kRScrollAlertViewWidth / 2.0, 100.0) Length:0];     pathAnimation.toValue = (id)[UIBezierPath drawPentagonWithCenter:CGPointMake(kRScrollAlertViewWidth / 2.0, 100.0) LengthArray:lengthsArray];     pathAnimation.duration = 0.75;     pathAnimation.autoreverses = NO;     pathAnimation.repeatCount = 0;     pathAnimation.timingFunction = [CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionLinear];      [self.shapeLayer addAnimation:pathAnimation forKey:@"scale"];     self.shapeLayer.path = [UIBezierPath drawPentagonWithCenter:CGPointMake(kRScrollAlertViewWidth / 2.0, 100.0) LengthArray:lengthsArray];     [self.layer addSublayer:self.shapeLayer];      [self performSelector:@selector(changeBgSizeFinish) withObject:nil afterDelay:0.75]; }  #pragma mark - 描绘分数五边行  按照各边同样的速度放大 - (void)drawScorePentagonV {     NSArray *scoresArray = [self analysisScoreArray:self.scoresArray];     NSMutableArray *lengthsArray = [NSMutableArray array];     [lengthsArray addObject:(id)[UIBezierPath drawPentagonWithCenter:CGPointMake(kRScrollAlertViewWidth / 2.0, 231 / 2.0) Length:0.0]];     for (int i = 0; i < [scoresArray count]; i++) {         NSArray *scores = [scoresArray objectAtIndex:i];         [lengthsArray addObject:(id)[UIBezierPath drawPentagonWithCenter:CGPointMake(kRScrollAlertViewWidth / 2.0, 231 / 2.0) LengthArray:[self convertLengthsFromScore:scores]]];     }     CAKeyframeAnimation *frameAnimation = [CAKeyframeAnimation animationWithKeyPath:@"path"];     frameAnimation.values = lengthsArray;     frameAnimation.keyTimes = [self analysisDurationArray:self.scoresArray];     frameAnimation.duration = 2;     frameAnimation.calculationMode = kCAAnimationLinear;      [self.shapeLayer addAnimation:frameAnimation forKey:@"scale"];     self.shapeLayer.path = [UIBezierPath drawPentagonWithCenter:CGPointMake(kRScrollAlertViewWidth / 2.0, 231 / 2.0) LengthArray:[self convertLengthsFromScore:[scoresArray lastObject]]];     [self.layer addSublayer:self.shapeLayer];       [self performSelector:@selector(changeBgSizeFinish) withObject:nil afterDelay:2]; }

接下来就是在动画结束的时候,将顶点的几个小图标加上去,没错,就是上面出现过的changeBgSizeFinish方法。

 #pragma mark - 描点 - (void)changeBgSizeFinish {     NSArray *array = [self convertLengthsFromScore:self.scoresArray];     NSArray *lengthsArray = [UIBezierPath converCoordinateFromLength:array Center:CGPointMake(kRScrollAlertViewWidth / 2.0, 100.0)];     for (int i = 0; i < [lengthsArray count]; i++) {         CGPoint point = [[lengthsArray objectAtIndex:i] CGPointValue];         RADotView *dotV = [[RADotView alloc] init];         dotV.dotColor = [UIColor colorWithHex:0xF86465];         dotV.center = point;         dotV.bounds = CGRectMake(0, 0, 8, 8);         [self addSubview:dotV];     } }

到这里整个需求就实现了,至于几个文字的Label,我没想到好的办法,都是通过量具体的坐标放到指定的位置上面的。好吧,我知道大家都很忙也比较喜欢偷懒,把剩余的相关代码也贴上来,大家也顺便帮我看看代码是否有错误的地方。

 #pragma mark - 分数转换 - (NSNumber *)convertLengthFromScore:(double)score {     if (score >= 4) {         return @(12 + 22 + 30 + 30);     } else if (score >= 3){         return @(12 + 22 + 30 + 30 * (score - 3));     } else if (score >= 2) {         return @(12 + 22 + 30 * (score - 2));     } else if (score >= 1) {         return @(12 + 22 * (score - 1));     } else  {         return @(12 * score);     } }  - (NSArray *)convertLengthsFromScore:(NSArray *)scoreArray {     NSMutableArray *lengthArray = [NSMutableArray array];     for (int i = 0; i < [scoreArray count]; i++) {         double score = [[scoreArray objectAtIndex:i] doubleValue];         [lengthArray addObject:[self convertLengthFromScore:score]];     }     return lengthArray; }  #pragma mark - 对分数进行排序(第二种动画方法需要) - (NSArray *)sortMergeScoresArray:(NSArray *)scores {     NSMutableDictionary *dic = [NSMutableDictionary dictionary];     for (int i = 0; i < [scores count]; i++) {         [dic setObject:@"scoresValue" forKey:[scores objectAtIndex:i]];     }      NSMutableArray *sortArray = [NSMutableArray arrayWithArray:dic.allKeys];     for (int i = 0; i < [sortArray count] - 1; i++) {         for (int j = 0; j < [sortArray count] - i - 1 ; j++) {             if ([[sortArray objectAtIndex:j] doubleValue] > [[sortArray objectAtIndex:j + 1] doubleValue]) {                 [sortArray exchangeObjectAtIndex:j withObjectAtIndex:j + 1];              }         }     }     return  sortArray; }  - (NSArray *)analysisDurationArray:(NSArray *)scores {     NSMutableArray *analysisArray = [NSMutableArray array];     NSArray *sortArray = [self sortMergeScoresArray:scores];     double lastProportion = 0;     [analysisArray addObject:@(0)];     for (int i = 0; i < [sortArray count]; i++) {         double currentProportion = [[sortArray objectAtIndex:i] doubleValue] / [[sortArray lastObject] doubleValue];         [analysisArray addObject:@(currentProportion)];          lastProportion = currentProportion;     }     return analysisArray; }  - (NSArray *)analysisScoreArray:(NSArray *)scores {     NSArray *sortArray = [self sortMergeScoresArray:scores];      NSMutableArray *analysisArray = [NSMutableArray array];      for (int i = 0; i < [sortArray count]; i++) {         double stepScore = [[sortArray objectAtIndex:i] doubleValue];         NSMutableArray *analysisScores = [NSMutableArray array];         for (int j = 0; j < [scores count]; j++) {             double score = [[scores objectAtIndex:j] doubleValue];             if (stepScore > score) {                 [analysisScores addObject:@(score)];             } else {                 [analysisScores addObject:@(stepScore)];             }         }         [analysisArray addObject:analysisScores];     }     return analysisArray; }

最后,总结一下这次的需求实现过程,敲代码之前一定一定要很仔细很仔细的分析一下需求,一定一定一定要。

如果你觉得这篇文章对你有一定的帮助,请点击一下下面的喜欢按钮,当然如果有问题也可以大家一起讨论。

 via:http://www.jianshu.com/p/4df4d4c15012
