SGGestureRecognizer：基于 $1 算法的图形手势识别器（iOS）

SGGestureRecognizer

SGGestureRecognizer is a graphics gesture recognizer based on Dollar One Alghrithm for iOS. It's more powerful than the UIGestureRecognizeer, it can record any gesture graphic at one stroke, suck as a star, an rectangle and so on. You can use these graphics to execute specific action.

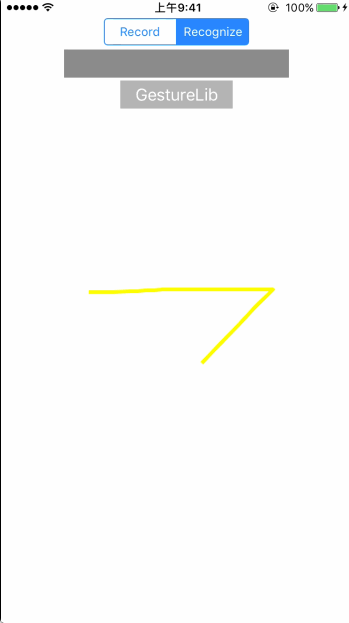

A GIF about the Recognizer

How To Get Started

Download SGGestureRecognizer and try out the inclued iPhone example app.

Installation

Drag the SGGestureRecognizer folder to your project.

Usage

Import header

#import "SGGestureRecognizer.h"

Add a gesture

Firstly, you should sample some points on the gesture path and put them to an NSArray , such as NSMutableArray<NSValue *> *samplePoints , for recognize, you should name the gesture when you create a gesture set.

SGDollarOneManager *mgr = [SGDollarOneManager sharedManager]; SGGestureSet *set = [SGGestureSet gestureSetWithName:<name of the gesture> points:self.samplePoints]; if (set.countPoints) {     [mgr addGestureSet:set]; }

When you add a gesture set, the manager will standardize the set and generate vector for this set, then save it to the save path on disk.

Recognize a gesture

You also should sample some points on the gesture path and pass to SGGestureSet , the recognizer will standardize the set and generate vector to compare with the vectors in gesture library.

SGDollarOneManager *mgr = [SGDollarOneManager sharedManager]; SGGestureSet *set = [SGGestureSet gestureSetWithPoints:self.samplePoints]; NSString *gesName = [mgr recognizeGestureSet:set];

if the gesName is not nil, that means the gesture is recognize succeeded.

Preview and delete gestures in library

You can preview and delete gestures in library by present an SGGesturePreviewController embedded in an UINavigationController .

- (void)preview {     SGGesturePreviewController *vc = [[SGGesturePreviewController alloc] init];     UINavigationController *nav = [[UINavigationController alloc] initWithRootViewController:vc];     [self presentViewController:nav animated:YES completion:nil]; }

The SGGesturePreviewController will load gestures from the SGGestureManager , you can delete a gesture by slide left a gesture cell.

Modify the library path

You can customize the gesture library save and load path by change the property in SGGestureManager . The coed below change the load path to main bundle, when you change the load path, the manager will reload gestures from the new path.

[SGDollarOneManager sharedManager].libLoadPath = [[NSBundle mainBundle] pathForResource:@"gestureLib.gs" ofType:nil];

The save path is the Caches Directory by default.

Custom params about recognize

There are three params in the manager property, they are samplePointCount , threshold and gestureSize .

SamplePointCount

When the manager resample the set, there will be some uniform distributed points on the gesture curve, the number of the points is defined in samplePointCount .

Threshold

When the manager recognize a gesture, it use Cosine Similarity to compare the vector of the gesture to be recognized and the vectors in the gesture library, if there cosine similarity is less than the threshold, it will be considered, when all vectors are enumerated, the manager will choose the best result to return.
