Step by step玩转RPC

RPC是实现SOA的基础，我在项目中多次玩过dubbo等SOA框架了，这种远程方法调用的方式不仅有趣而且有非常重要的现实意义。可以让我们把庞大的系统拆分成许多模块，每个模块又可以根据不同的压力启动不同数量的实例，模块间通过RPC透明地通信，从而将集中式的系统改造成分布式应用提高其扩展性，优化硬件资源利用率。

闲来无事，我们也来一步步手动实现RPC来感受下其中的乐趣吧。

第0步：写服务

甭管是否是远程方法调用，写两个可以调用的服务先。

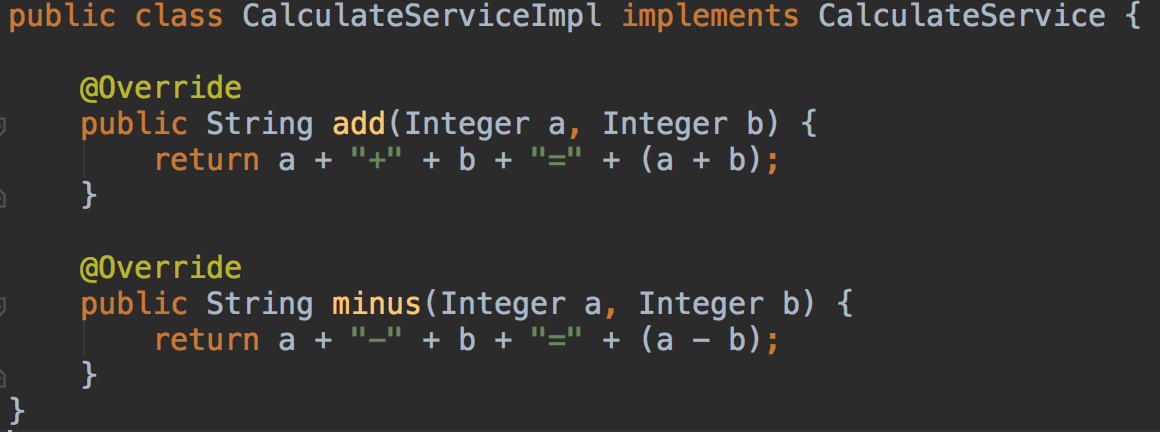

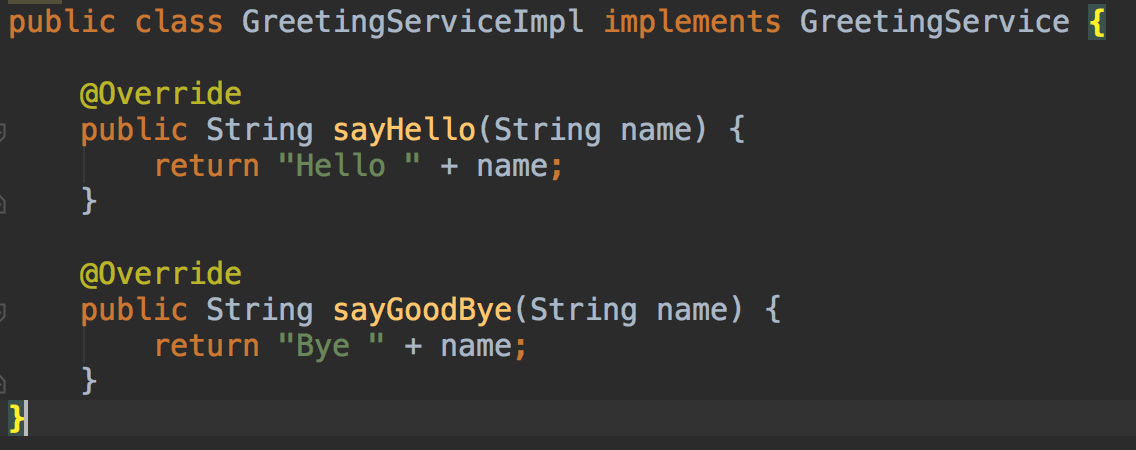

很简单，一个是打招呼服务，两个方法，一个say hello，一个say byebye。另一个是计算服务，一个加，一个减。

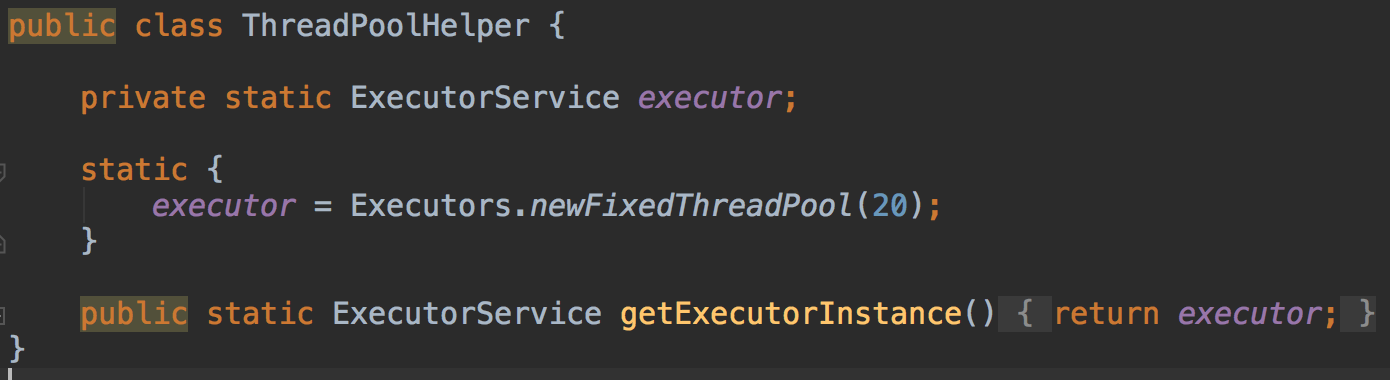

另外，再整个简单的线程池来提高下资源利用率

第1步：socket通信实现RPC

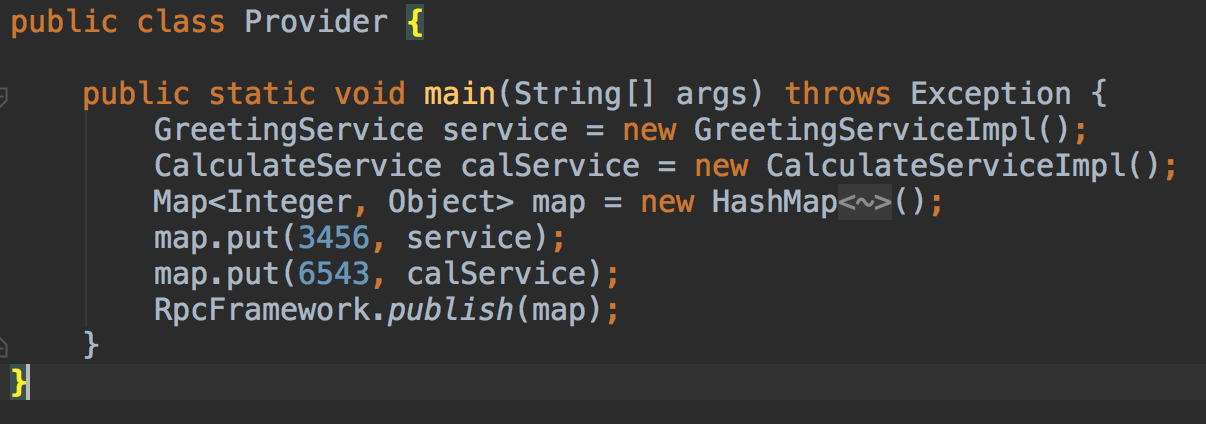

1.服务端发布服务

分别把GreetingService注册到3456端口，CalculateService注册到6543端口。

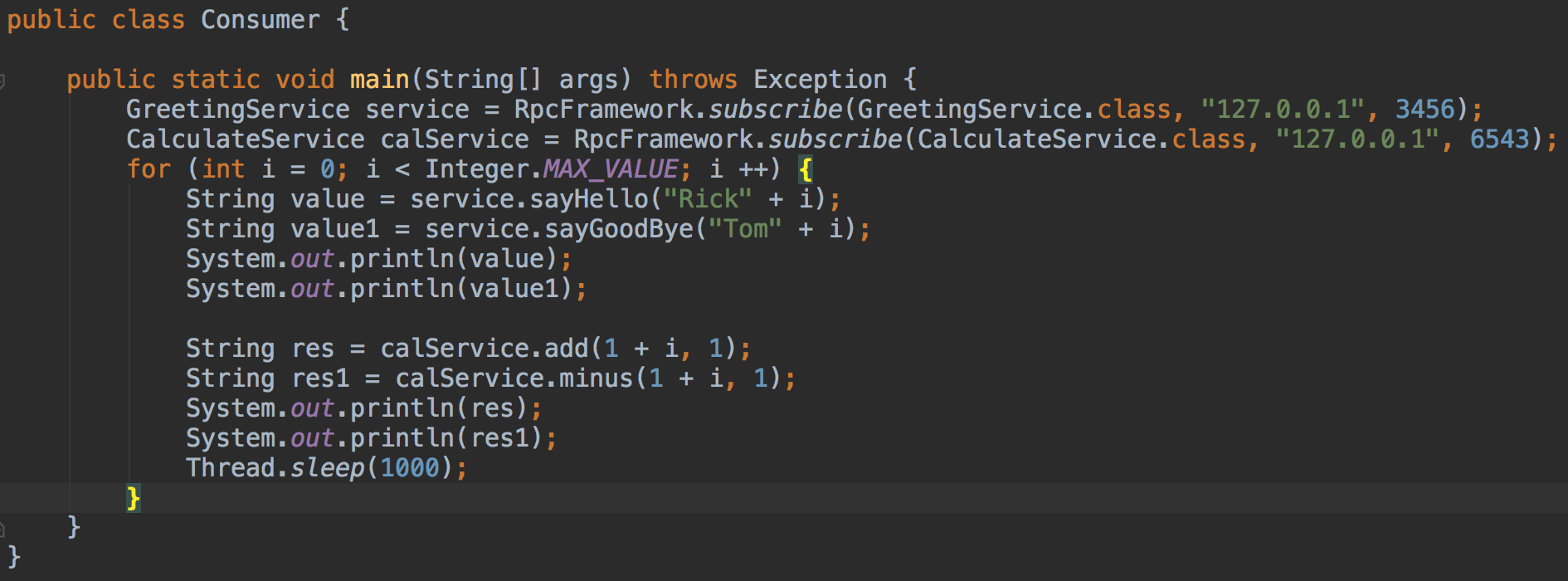

2.客户端订阅服务

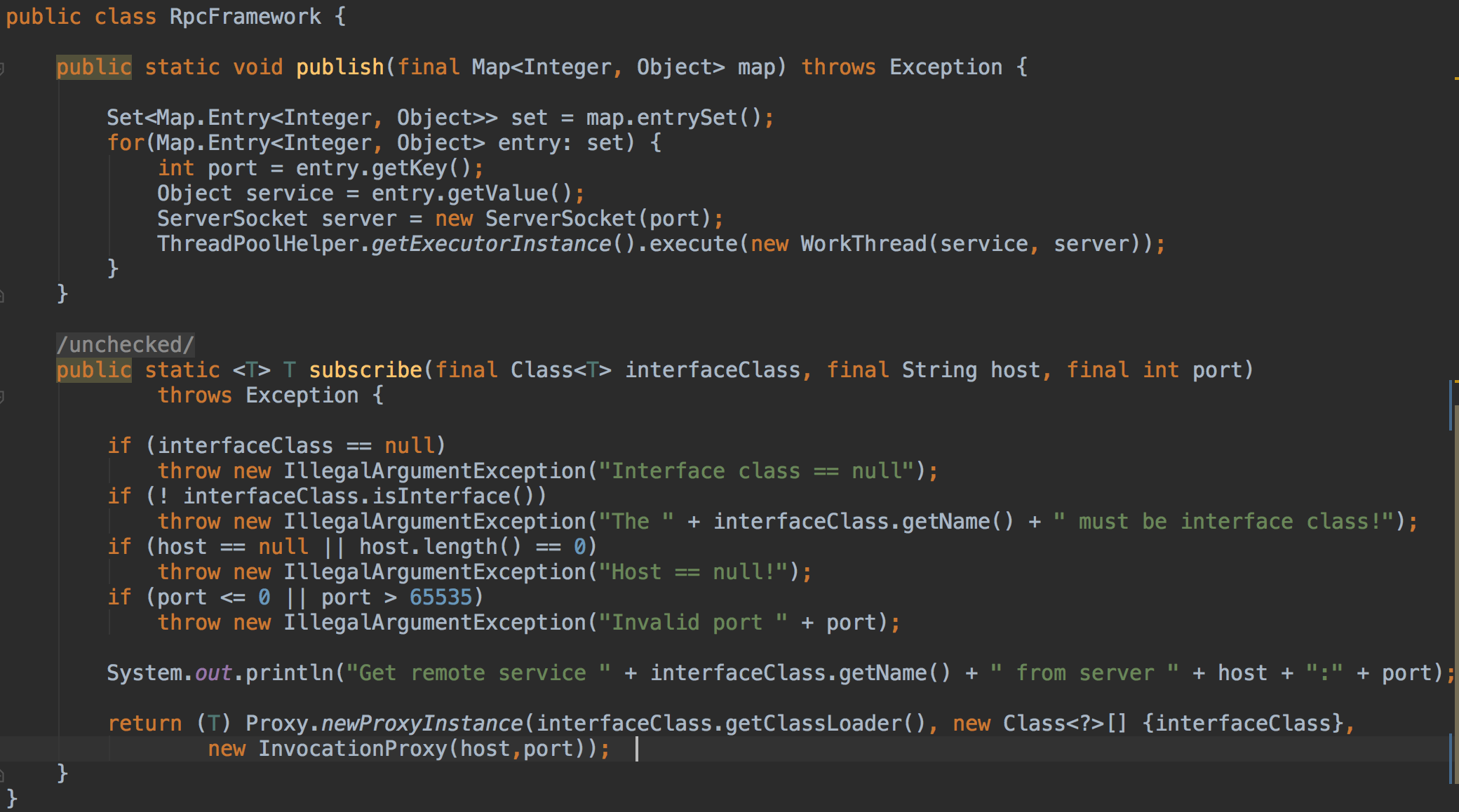

3.管理发布和订阅的框架

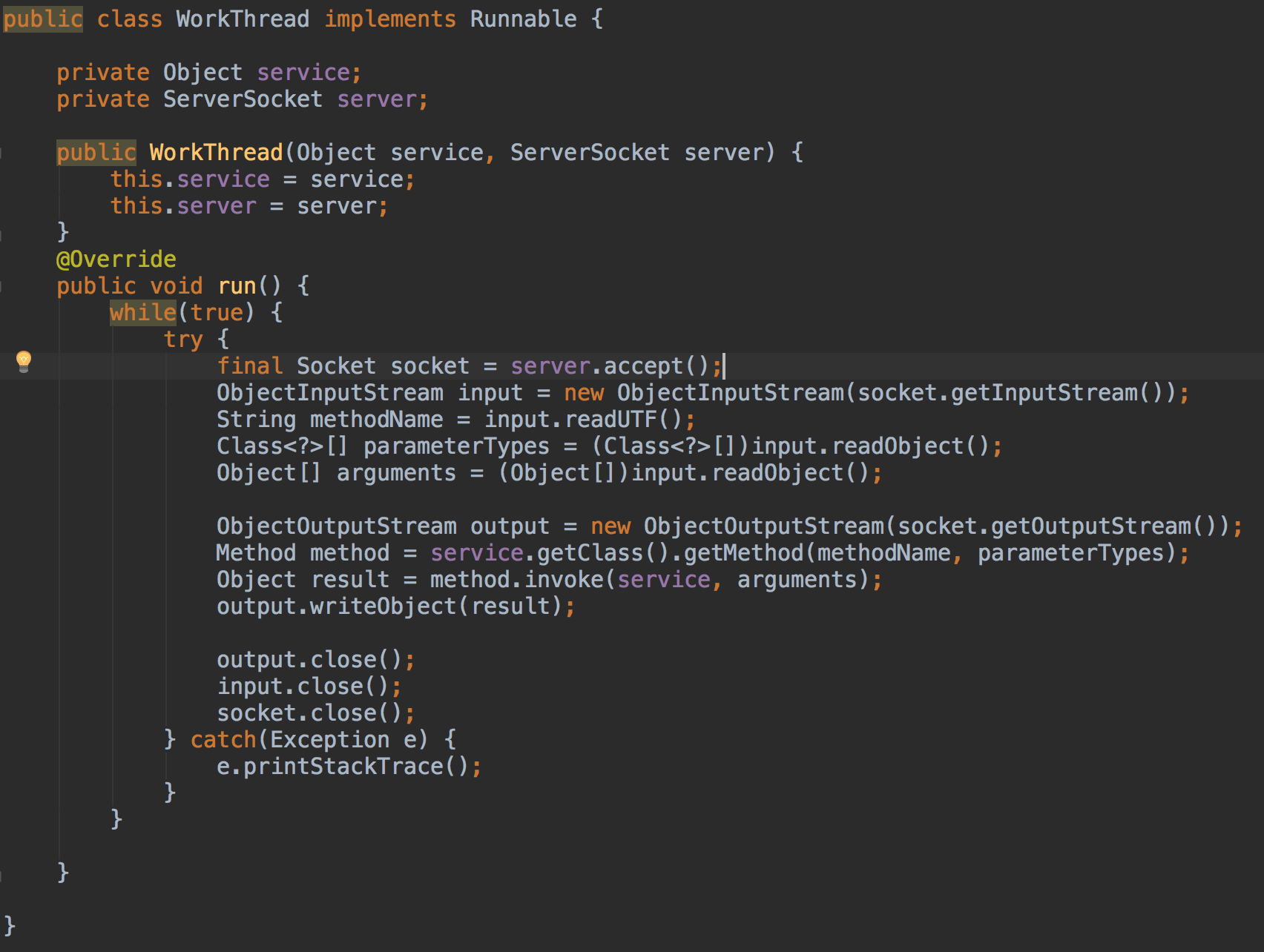

4.服务发布线程

服务发布的实质就是创建ServerSocket，监听服务发布的端口，当接收到请求时，根据请求中的方法名和参数动态调用方法，并把结果返回给客户端。

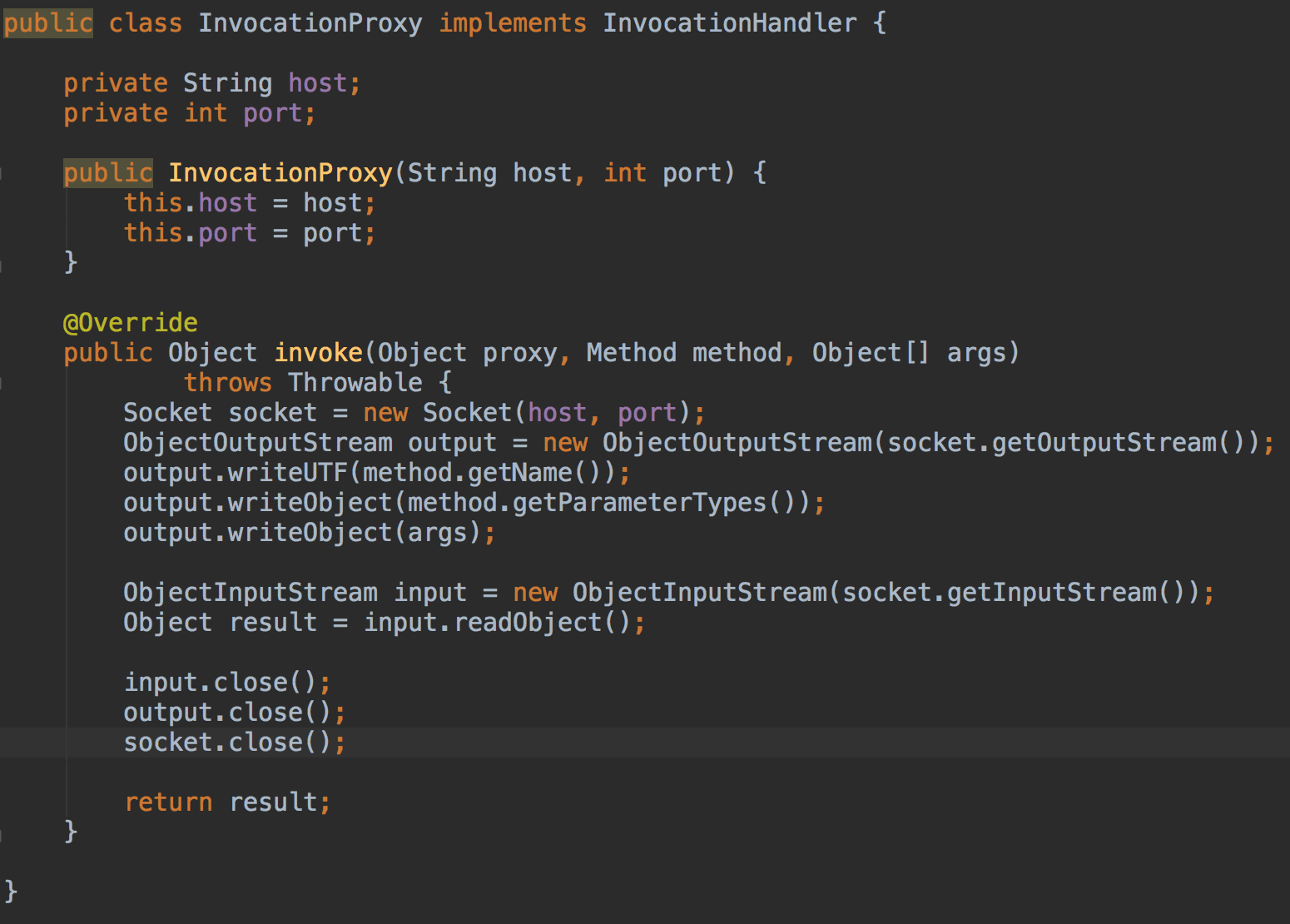

5.客户端代理

用动态代理模式，使得客户端调用方法的时候，实际上是建立socket连接，把方法和参数传给服务端，并接收服务端返回的结果。

运行结果

第2步：nio改写代码

上一步我们已经实现了RPC模型，不过仍有很多不足，比如我们用的是阻塞IO的方式进行的通信，因为远程方法的调用不需要建立长连接，所以用非阻塞IO的方式可以大大提高效率。

1.客户端和服务端的Customer.java和Provider.java不变，因为我们只是改变通讯方式。

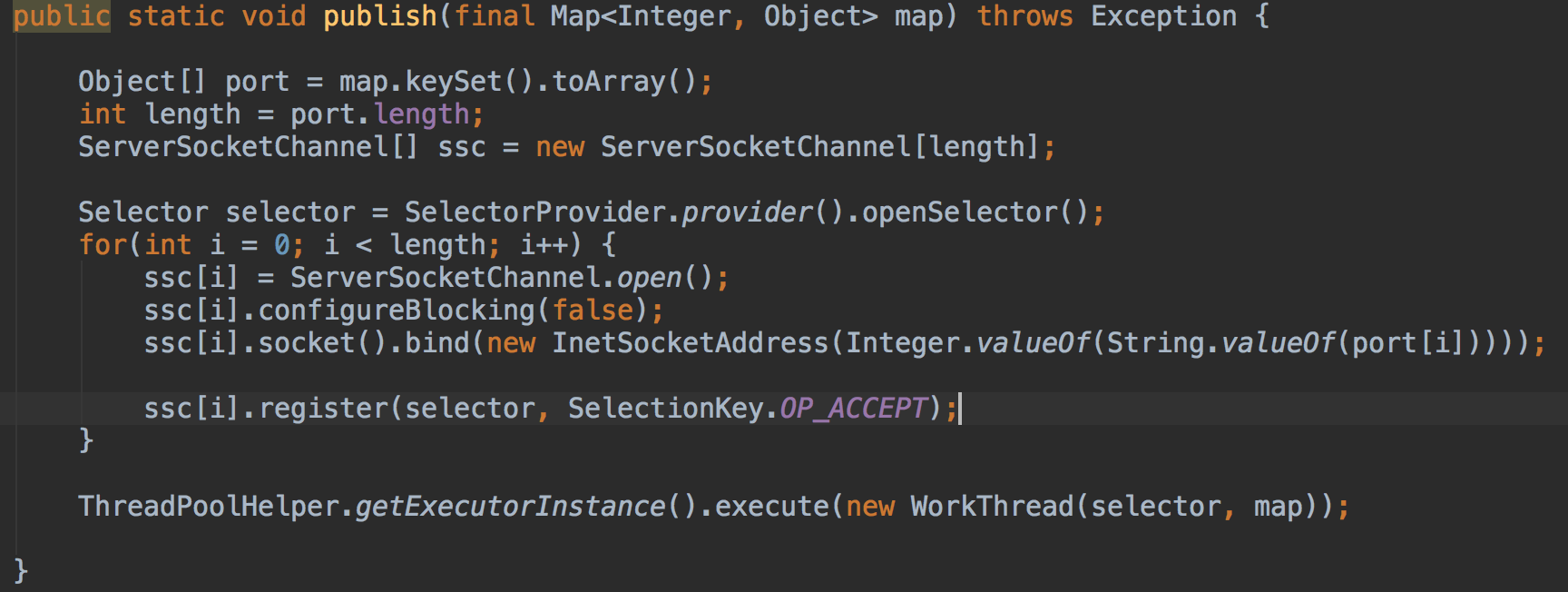

2.RpcFramework.java中的publish方法需要稍加改动

在bio的方式中，我们为每个service建立一个ServerSocket，而这里，我们创建一个selector，然后为每个service创建一个channel注册到selector中，每个channel处于OP_ACCETP状态。

3.WorkThread.java修改如下

public class WorkThread implements Runnable {      private Selector selector;     private Map<Integer, Object> map;      private final static int BLOCK = 4096;     private ByteBuffer sendBuffer = ByteBuffer.allocate(BLOCK);     private ByteBuffer receiveBuffer = ByteBuffer.allocate(BLOCK);      public WorkThread(Selector selector, Map<Integer, Object> map) {         this.selector = selector;         this.map = map;     }     @Override     public void run() {         while(true) {             try {                 selector.select();                 Iterator<SelectionKey> iter = selector.selectedKeys().iterator();                 while(iter.hasNext()) {                     SelectionKey sk = iter.next();                     iter.remove();                     ServerSocketChannel server = null;                     SocketChannel client = null;                     int count = 0;                     if(sk.isAcceptable()) {                         server = (ServerSocketChannel)sk.channel();                         client = server.accept();                         client.configureBlocking(false);                         client.register(selector, SelectionKey.OP_READ);                     } else if(sk.isReadable()) {                         client = (SocketChannel)sk.channel();                         receiveBuffer.clear();                         count = client.read(receiveBuffer);                         if(count > 0) {                             String s = new String(receiveBuffer.array(),0,count);                              ObjectMapper mapper = new ObjectMapper();                             JsonNode node = mapper.readTree(s);                              String methodName = node.get("method").asText();                             JsonNode ptNode = node.get("parameterType");                             JsonNode pvNode = node.get("args");                              Object result = null;                             if(ptNode.isArray() && pvNode.isArray()) {                                 int length = ptNode.size();                                 Class[] paramTypes = new Class[length];                                 for(int i = 0; i < length; i++) {                                     paramTypes[i] = Class.forName(ptNode.get(i).asText());                                 }                                 Object[] args = new Object[length];                                 for(int i = 0; i < length; i++) {                                     args[i] = pvNode.get(i).isInt()? Integer.valueOf(pvNode.get(i).asInt()): pvNode.get(i).asText();                                 }                                 int port = ((InetSocketAddress)client.getLocalAddress()).getPort();                                 Object service = map.get(port);                                 Method method = service.getClass().getMethod(methodName, paramTypes);                                 result = method.invoke(service, args);                             }                              sendBuffer.clear();                             sendBuffer.put(result.toString().getBytes());                             sendBuffer.flip();                             client.write(sendBuffer);                             client.register(selector, SelectionKey.OP_READ);                         }                         client.close();                         sk.cancel();                      }                 }              } catch (Exception e) {                 e.printStackTrace();             }         }     } }

这里为了方便调试，使用了json字符串传递数据。

4.InvocationProxy.java修改如下

package com.rick.archi.soa.nio_tcp_rpc;  import org.codehaus.jackson.map.ObjectMapper;   import org.codehaus.jackson.node.ArrayNode;   import org.codehaus.jackson.node.ObjectNode;  import java.io.ObjectInputStream;   import java.io.ObjectOutputStream;   import java.lang.reflect.InvocationHandler;   import java.lang.reflect.Method;   import java.net.InetSocketAddress;   import java.net.Socket;   import java.nio.ByteBuffer;   import java.nio.channels.SelectionKey;   import java.nio.channels.Selector;   import java.nio.channels.SocketChannel;   import java.util.Iterator;   import java.util.Set;  public class InvocationProxy implements InvocationHandler {      private String host;     private int port;      private final static int BLOCK = 4096;     private ByteBuffer sendBuffer = ByteBuffer.allocate(BLOCK);     private ByteBuffer receiveBuffer = ByteBuffer.allocate(BLOCK);      public InvocationProxy(String host, int port) {         this.host = host;         this.port = port;     }      @Override     public Object invoke(Object proxy, Method method, Object[] args)             throws Throwable {         SocketChannel sc = SocketChannel.open();         sc.configureBlocking(false);         Selector selector = Selector.open();         sc.register(selector, SelectionKey.OP_CONNECT);         sc.connect(new InetSocketAddress(host, port));          Iterator<SelectionKey> iterator;         SelectionKey selectionKey;         SocketChannel client;         String result = "";         int count=0;         boolean finish = false;         while(!finish) {             selector.select();             iterator = selector.selectedKeys().iterator();              while (iterator.hasNext()) {                 selectionKey = iterator.next();                 if (selectionKey.isConnectable()) {                     client = (SocketChannel) selectionKey.channel();                     if (client.isConnectionPending()) {                         client.finishConnect();                         sendBuffer.clear();                          ObjectMapper objectMapper = new ObjectMapper();                         ObjectNode node = objectMapper.createObjectNode();                         Class<?>[] clazz = method.getParameterTypes();                         ArrayNode array1 = objectMapper.valueToTree(clazz);                         ArrayNode array2 = objectMapper.valueToTree(args);                         node.put("method", method.getName());                         node.put("parameterType", array1);                         node.put("args", array2);                          String s = node.toString();                          sendBuffer.put(s.getBytes());                         sendBuffer.flip();                         client.write(sendBuffer);                     }                     client.register(selector, SelectionKey.OP_READ);                 } else if (selectionKey.isReadable()) {                     client = (SocketChannel) selectionKey.channel();                     receiveBuffer.clear();                     count = client.read(receiveBuffer);                     if(count>0){                         result = new String( receiveBuffer.array(),0,count);                     }                     finish = true;                     client.close();                     selectionKey.cancel();                 }                 selector.selectedKeys().clear();             }         }          return result;     }  }

运行结果是一样的。

第3步：使用netty改写代码

使用nio的方式可以在一个线程中处理多个channel。从而大大提高效率，但是你也发现原生的nio写法非常繁琐，这里我们就用netty（3.x）来改写代码，使代码更加简洁易懂。

1.Provider.java和Customer.java依然不变

2.RpcFramework.java改写如下

public class RpcFramework {      private static Map<String, ClientBootstrap> map = Maps.newHashMap();       public static void publish(final Map<Integer, Object> map) throws Exception {          ServerBootstrap server = new ServerBootstrap(                 new NioServerSocketChannelFactory(                         ThreadPoolHelper.getExecutorInstance(),                         ThreadPoolHelper.getExecutorInstance()                 )         );         server.setPipelineFactory(    new ChannelPipelineFactory() {             @Override             public ChannelPipeline getPipeline() throws Exception {                 return Channels.pipeline(new ServerHandler(map));             }         });          Set<Integer> ports = map.keySet();         for(int port : ports) {             server.bind(new InetSocketAddress(port));         }     }      public static <T> T subscribe(final Class<T> interfaceClass, final String host, final int port) throws Exception {          final SimpleChannelHandler handler = new ClientHandler();         final String[] result = new String[1];          ClientBootstrap client;         if((client = map.get("client")) == null) {             client = new ClientBootstrap(                     new NioClientSocketChannelFactory(                             ThreadPoolHelper.getExecutorInstance(),                             ThreadPoolHelper.getExecutorInstance()                     )             );             map.put("client", client);         }          client.setPipelineFactory(new ChannelPipelineFactory() {             @Override             public ChannelPipeline getPipeline() throws Exception {                 return Channels.pipeline(handler);             }         });         ChannelFuture future = client.connect(new InetSocketAddress(host, port));          future.addListener(new ChannelFutureListener() {             @Override             public void operationComplete(ChannelFuture channelFuture) throws Exception {                 synchronized (result) {                     result.notify();                 }             }         });          synchronized (result) {             result.wait();         }          return (T) Proxy.newProxyInstance(interfaceClass.getClassLoader(), new Class<?>[] {interfaceClass},                 (InvocationHandler)handler);     } }

在subscribe方法中我用map保存ClientBootstrap是因为netty中处理的ClientBootstrap必须是实例变量。而这里的ClientBootstrap对象又必须全局唯一。最后为future添加监听函数，使得客户端连接成功以后，subscribe方法结束阻塞返回代理。

3.原来的WorkThread.java变成了ServerHandler.java，代码如下：

public class ServerHandler extends SimpleChannelHandler {      private Map<Integer, Object> map;      public ServerHandler(Map<Integer, Object> map) {         this.map = map;     }      @Override     public void exceptionCaught(ChannelHandlerContext ctx, ExceptionEvent e) throws Exception {         System.out.println("Exception occured...");         e.getCause().printStackTrace();     }      @Override     public void messageReceived(ChannelHandlerContext ctx, final MessageEvent e) throws Exception {         ChannelBuffer buf = (ChannelBuffer) e.getMessage();         String s = new String(buf.array(), "utf-8");          ObjectMapper mapper = new ObjectMapper();         JsonNode node = mapper.readTree(s);          String methodName = node.get("method").asText();         JsonNode ptNode = node.get("parameterType");         JsonNode pvNode = node.get("args");          Object result = null;         if(ptNode.isArray() && pvNode.isArray()) {             int length = ptNode.size();             Class[] paramTypes = new Class[length];             for(int i = 0; i < length; i++) {                 paramTypes[i] = Class.forName(ptNode.get(i).asText());             }             Object[] args = new Object[length];             for(int i = 0; i < length; i++) {                 args[i] = pvNode.get(i).isInt()? Integer.valueOf(pvNode.get(i).asInt()): pvNode.get(i).asText();             }             int port = ((InetSocketAddress)e.getChannel().getLocalAddress()).getPort();             Object service = map.get(port);             Method method = service.getClass().getMethod(methodName, paramTypes);             result = method.invoke(service, args);         }          ChannelFuture future = e.getChannel().write(ChannelBuffers.wrappedBuffer(((String)result).getBytes("utf-8")));         future.sync();     } }

4.原来的InvocationProxy.java变成了ClientHandler.java，代码如下：

public class ClientHandler extends SimpleChannelHandler implements InvocationHandler {      private Channel channel;      private String[] result = new String[1];      @Override     public Object invoke(Object proxy, final Method method, final Object[] args)             throws Throwable {          this.sendMessage(method, args);          synchronized (result) {             result.wait();         }          return result[0];     }      @Override     public void exceptionCaught(ChannelHandlerContext ctx, ExceptionEvent e) throws Exception {         System.out.println("Client exception...");         e.getCause().printStackTrace();     }      @Override     public void channelConnected(ChannelHandlerContext ctx, ChannelStateEvent e) throws Exception {         this.channel = e.getChannel();     }      public void sendMessage(Method method, Object[] args) throws Exception {         if(channel != null && channel.isConnected()) {             ObjectMapper objectMapper = new ObjectMapper();             ObjectNode node = objectMapper.createObjectNode();             Class<?>[] clazz = method.getParameterTypes();             ArrayNode array1 = objectMapper.valueToTree(clazz);             ArrayNode array2 = objectMapper.valueToTree(args);             node.put("method", method.getName());             node.put("parameterType", array1);             node.put("args", array2);              String s = node.toString();              ChannelFuture future = channel.write(ChannelBuffers.wrappedBuffer(s.getBytes("utf-8")));             future.sync();         }     }      @Override     public void messageReceived(ChannelHandlerContext ctx, MessageEvent e) throws Exception {         ChannelBuffer buf = (ChannelBuffer) e.getMessage();         String s = new String(buf.array(), "utf-8");          synchronized (result) {             this.result[0] = s;             result.notify();         }      }  }

当调用被代理的方法时，调用sendMessage发送方法名、参数到服务端。messageReceived接收服务端返回的结果。由于是异步执行。所以在invoke方法中执行result.wait()。直到messageReceived接收到结果再将结果返回。

第4步：添加zookeeper注册中心

前面我们陆续改进了很多问题，不过还有一个很重要的问题————服务注册、订阅的问题没有解决。实际应用中我们一定会有多台服务器提供同一个服务，我们需要将这些信息注册到注册中心去，同时服务的消费方需要到注册中心拿到所有服务提供方的信息，然后根据某种负载均衡算法，选择其中一个提供方提供服务。因此这里我们加入zookeeper，并使用zkClient做为客户端。

1.Provider.java改动如下：

map.put(3456, service);

map.put(3457, service);

这次我们有两个GreetingService服务提供方，分别使用3456和3457端口。

2.Customer.java改动如下：

GreetingService service = RpcFramework.getInstance().subscribe(GreetingService.class);

CalculateService calService = RpcFramework.getInstance().subscribe(CalculateService.class);

我们无需在调用subscribe订阅时传入服务端口号了，因为我们要根据zookeeper中注册的服务端口号自己选择一个来服务。

3.RpcFramework.java改动如下：

public class RpcFramework {      private static final String ROOT = "/service";      private ZkClient client;      private RpcFramework() {         client = new ZkClient("127.0.0.1");     }      private static RpcFramework instance = new RpcFramework();      public static RpcFramework getInstance() {         return instance;     }       private static Map<String, ClientBootstrap> map = Maps.newHashMap();       public void publish(final Map<Integer, Object> map) throws Exception {          ServerBootstrap server = new ServerBootstrap(                 new NioServerSocketChannelFactory(                         ThreadPoolHelper.getExecutorInstance(),                         ThreadPoolHelper.getExecutorInstance()                 )         );         server.setPipelineFactory(    new ChannelPipelineFactory() {             @Override             public ChannelPipeline getPipeline() throws Exception {                 return Channels.pipeline(new ServerHandler(map));             }         });          Set<Integer> ports = map.keySet();         for(int port : ports) {             server.bind(new InetSocketAddress(port));             Class[] interfaces = map.get(port).getClass().getInterfaces();             String name = interfaces[0].getSimpleName();             //register             client.createPersistent(ROOT + "/" + name + "/" + port, true);         }     }      public <T> T subscribe(final Class<T> interfaceClass) throws Exception {          String host = "127.0.0.1";         int port;         String name = interfaceClass.getSimpleName();         List<String> ports = client.getChildren(ROOT + "/" + name);          if(ports.size() == 1) {             port = Integer.valueOf(ports.get(0));         } else {             Random r = new Random();             int index = r.nextInt(ports.size());             port = Integer.valueOf(ports.get(index));         }          System.out.println("------------------" + port);          final SimpleChannelHandler handler = new ClientHandler();         final String[] result = new String[1];          ClientBootstrap client;         if((client = map.get("client")) == null) {             client = new ClientBootstrap(                     new NioClientSocketChannelFactory(                             ThreadPoolHelper.getExecutorInstance(),                             ThreadPoolHelper.getExecutorInstance()                     )             );             map.put("client", client);         }          client.setPipelineFactory(new ChannelPipelineFactory() {             @Override             public ChannelPipeline getPipeline() throws Exception {                 return Channels.pipeline(handler);             }         });         ChannelFuture future = client.connect(new InetSocketAddress(host, port));          future.addListener(new ChannelFutureListener() {             @Override             public void operationComplete(ChannelFuture channelFuture) throws Exception {                 synchronized (result) {                     result.notify();                 }             }         });          synchronized (result) {             result.wait();         }          return (T) Proxy.newProxyInstance(interfaceClass.getClassLoader(), new Class<?>[] {interfaceClass},                 (InvocationHandler)handler);     } }

我们把它改成了单例类，好让它在初始化的时候就建立zkClient连接。在publish方法最后调用zkClient的createPersistent方法，注册服务。在subscribe方法中用zkClient的getChildren方法得到服务列表，然后随机选择一个提供服务。

当然程序还有很多改进的地方，比如可以加入session或者state改变的监听器等等。不过在这里并不是重点，所以略去不表。不过也不难看出，要想自己开发一个dubbo这样的SOA框架，还是有很多方方面面的细节需要考虑的。
