Java网络编程与NIO详解15：Tomcat中的Connector源码分析（NIO）

<dependency>
    <groupId>org.apache.tomcat.embed</groupId>
    tomcat-embed-core
    <version>9.0.6</version>
</dependency>

public static void main(String[] args) throws LifecycleException {

   Tomcat tomcat = new Tomcat();

   Connector connector = new Connector("HTTP/1.1");
   connector.setPort(8080);
   tomcat.setConnector(connector);

   tomcat.start();
   tomcat.getServer().await();
}

// 非阻塞模式
public class Http11NioProtocol extends AbstractHttp11JsseProtocol<NioChannel> {
    public Http11NioProtocol() {
        // NioEndpoint
        super(new NioEndpoint());
    }
    ...
}
// 异步模式
public class Http11Nio2Protocol extends AbstractHttp11JsseProtocol<Nio2Channel> {

    public Http11Nio2Protocol() {
        // Nio2Endpoint
        super(new Nio2Endpoint());
    }
    ...
}

@Override
public void init() throws Exception {
    ...
    String endpointName = getName();
    endpoint.setName(endpointName.substring(1, endpointName.length()-1));
    endpoint.setDomain(domain);
    // endpoint 的 name=http-nio-8089,domain=Tomcat
    endpoint.init();
}

public final void init() throws Exception {
    if (bindOnInit) {
        bind(); // 这里对应的当然是子类 NioEndpoint 的 bind() 方法
        bindState = BindState.BOUND_ON_INIT;
    }
    ...
}

@Override
public void bind() throws Exception {
    // initServerSocket(); 原代码是这行，我们 “内联” 过来一起说

    // 开启 ServerSocketChannel
    serverSock = ServerSocketChannel.open();
    socketProperties.setProperties(serverSock.socket());

    // getPort() 会返回我们最开始设置的 8080，得到我们的 address 是 0.0.0.0:8080
    InetSocketAddress addr = (getAddress()!=null?new InetSocketAddress(getAddress(),getPort()):new InetSocketAddress(getPort()));

    // ServerSocketChannel 绑定地址、端口，
    // 第二个参数 backlog 默认为 100，超过 100 的时候，新连接会被拒绝(不过源码注释也说了，这个值的真实语义取决于具体实现)
    serverSock.socket().bind(addr,getAcceptCount());

    // ※※※ 设置 ServerSocketChannel 为阻塞模式 ※※※
    serverSock.configureBlocking(true);

    // 设置 acceptor 和 poller 的数量，至于它们是什么角色，待会说
    // acceptorThreadCount 默认为 1
    if (acceptorThreadCount == 0) {
        // FIXME: Doesn't seem to work that well with multiple accept threads
        // 作者想表达的意思应该是：使用多个 acceptor 线程并不见得性能会更好
        acceptorThreadCount = 1;
    }

    // poller 线程数，默认值定义如下，所以在多核模式下，默认为 2
    // pollerThreadCount = Math.min(2,Runtime.getRuntime().availableProcessors());
    if (pollerThreadCount <= 0) {
        pollerThreadCount = 1;
    }

    //
    setStopLatch(new CountDownLatch(pollerThreadCount));

    // 初始化 ssl，我们忽略 ssl
    initialiseSsl();

    // 打开 NioSelectorPool，先忽略它
    selectorPool.open();
}

@Override
public void start() throws Exception {
    ...
    // 调用 endpoint 的 start 方法
    endpoint.start();

    // Start async timeout thread
    asyncTimeout = new AsyncTimeout();
    Thread timeoutThread = new Thread(asyncTimeout, getNameInternal() + "-AsyncTimeout");
    int priority = endpoint.getThreadPriority();
    if (priority < Thread.MIN_PRIORITY || priority > Thread.MAX_PRIORITY) {
        priority = Thread.NORM_PRIORITY;
    }
    timeoutThread.setPriority(priority);
    timeoutThread.setDaemon(true);
    timeoutThread.start();
}

public final void start() throws Exception {
    // 按照我们的流程，刚刚 init 的时候，已经把 bindState 改为 BindState.BOUND_ON_INIT 了，
    // 所以下面的 if 分支我们就不进去了
    if (bindState == BindState.UNBOUND) {
        bind();
        bindState = BindState.BOUND_ON_START;
    }
    // 往里看 NioEndpoint 的实现
    startInternal();
}

@Override
public void startInternal() throws Exception {

    if (!running) {
        running = true;
        paused = false;

        // 以下几个是缓存用的，之后我们也会看到很多这样的代码，为了减少 new 很多对象出来
        processorCache = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
                socketProperties.getProcessorCache());
        eventCache = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
                        socketProperties.getEventCache());
        nioChannels = new SynchronizedStack<>(SynchronizedStack.DEFAULT_SIZE,
                socketProperties.getBufferPool());

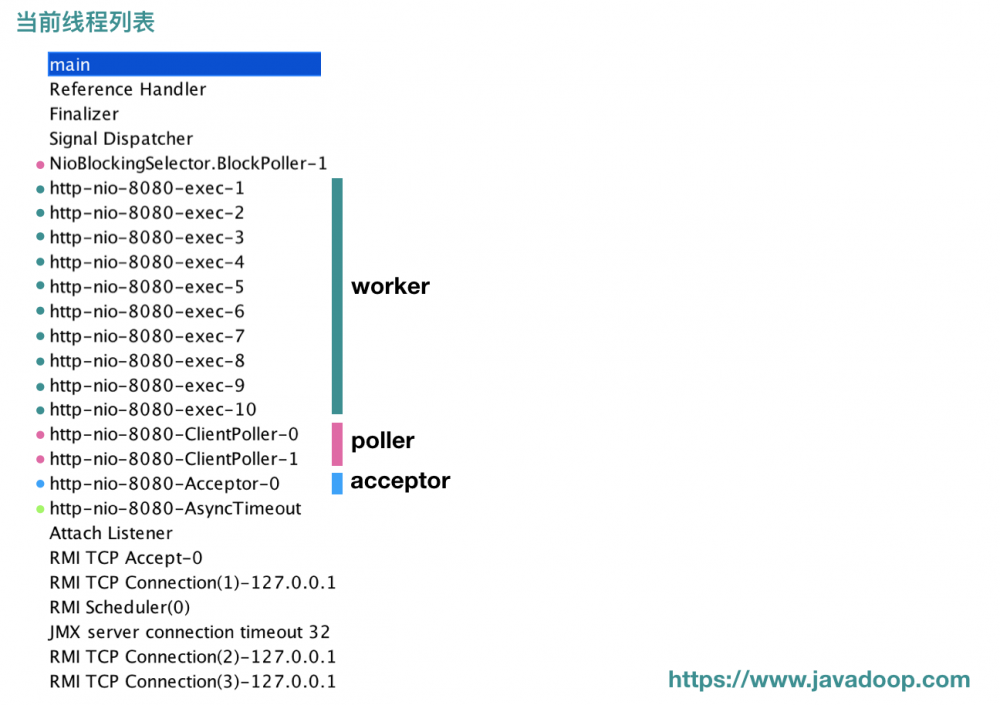

        // 创建【工作线程池】，Tomcat 自己包装了一下 ThreadPoolExecutor，
        // 1/. 为了在创建线程池以后，先启动 corePoolSize 个线程(这个属于线程池的知识了，不熟悉的读者可以看看我之前的文章)
        // 2/. 自己管理线程池的增长方式（默认 corePoolSize 10, maxPoolSize 200），不是本文重点，不分析
        if ( getExecutor() == null ) {
            createExecutor();
        }

        // 设置一个栅栏（tomcat 自定义了类 LimitLatch），控制最大的连接数，默认是 10000
        initializeConnectionLatch();

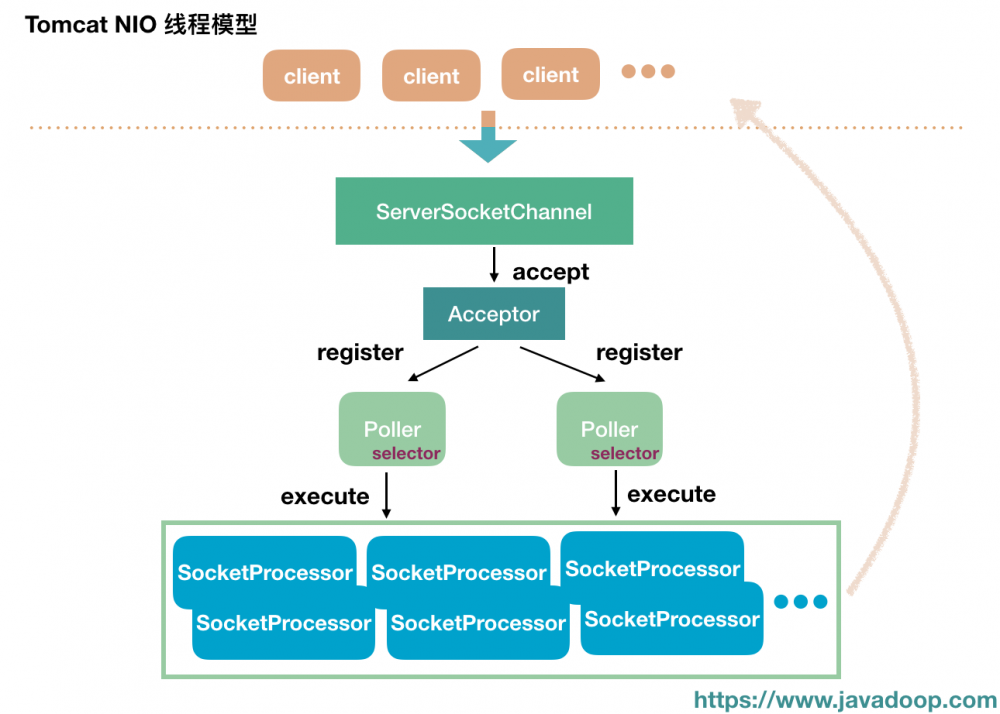

        // 开启 poller 线程
        // 还记得之前 init 的时候，默认地设置了 poller 的数量为 2，所以这里启动 2 个 poller 线程
        pollers = new Poller[getPollerThreadCount()];
        for (int i=0; i<pollers.length; i++) {
            pollers[i] = new Poller();
            Thread pollerThread = new Thread(pollers[i], getName() + "-ClientPoller-"+i);
            pollerThread.setPriority(threadPriority);
            pollerThread.setDaemon(true);
            pollerThread.start();
        }

        // 开启 acceptor 线程，和开启 poller 线程组差不多。
        // init 的时候，默认地，acceptor 的线程数是 1
        startAcceptorThreads();
    }
}

private final AbstractEndpoint<?,U> endpoint;
private String threadName;
protected volatile AcceptorState state = AcceptorState.NEW;

public Acceptor(AbstractEndpoint<?,U> endpoint) {
    this.endpoint = endpoint;
}

public enum AcceptorState {
    NEW, RUNNING, PAUSED, ENDED
}

@Override
public void run() {

    int errorDelay = 0;

    // 只要 endpoint 处于 running，这里就一直循环
    while (endpoint.isRunning()) {

        // 如果 endpoint 处于 pause 状态，这边 Acceptor 用一个 while 循环将自己也挂起
        while (endpoint.isPaused() && endpoint.isRunning()) {
            state = AcceptorState.PAUSED;
            try {
                Thread.sleep(50);
            } catch (InterruptedException e) {
                // Ignore
            }
        }
        // endpoint 结束了，Acceptor 自然也要结束嘛
        if (!endpoint.isRunning()) {
            break;
        }
        state = AcceptorState.RUNNING;

        try {
            // 如果此时达到了最大连接数(之前我们说过，默认是10000)，就等待
            endpoint.countUpOrAwaitConnection();

            // Endpoint might have been paused while waiting for latch
            // If that is the case, don't accept new connections
            if (endpoint.isPaused()) {
                continue;
            }

            U socket = null;
            try {
                // 这里就是接收下一个进来的 SocketChannel
                // 之前我们设置了 ServerSocketChannel 为阻塞模式，所以这边的 accept 是阻塞的
                socket = endpoint.serverSocketAccept();
            } catch (Exception ioe) {
                // We didn't get a socket
                endpoint.countDownConnection();
                if (endpoint.isRunning()) {
                    // Introduce delay if necessary
                    errorDelay = handleExceptionWithDelay(errorDelay);
                    // re-throw
                    throw ioe;
                } else {
                    break;
                }
            }
            // accept 成功，将 errorDelay 设置为 0
            errorDelay = 0;

            if (endpoint.isRunning() && !endpoint.isPaused()) {
                // setSocketOptions() 是这里的关键方法，也就是说前面千辛万苦都是为了能到这里进行处理
                if (!endpoint.setSocketOptions(socket)) {
                    // 如果上面的方法返回 false，关闭 SocketChannel
                    endpoint.closeSocket(socket);
                }
            } else {
                // 由于 endpoint 不 running 了，或者处于 pause 了，将此 SocketChannel 关闭
                endpoint.destroySocket(socket);
            }
        } catch (Throwable t) {
            ExceptionUtils.handleThrowable(t);
            String msg = sm.getString("endpoint.accept.fail");
            // APR specific.
            // Could push this down but not sure it is worth the trouble.
            if (t instanceof Error) {
                Error e = (Error) t;
                if (e.getError() == 233) {
                    // Not an error on HP-UX so log as a warning
                    // so it can be filtered out on that platform
                    // See bug 50273
                    log.warn(msg, t);
                } else {
                    log.error(msg, t);
                }
            } else {
                    log.error(msg, t);
            }
        }
    }
    state = AcceptorState.ENDED;
}

@Override
protected boolean setSocketOptions(SocketChannel socket) {
    try {
        // 设置该 SocketChannel 为非阻塞模式
        socket.configureBlocking(false);
        Socket sock = socket.socket();
        // 设置 socket 的一些属性
        socketProperties.setProperties(sock);

        // 还记得 startInternal 的时候，说过了 nioChannels 是缓存用的。
        // 限于篇幅，这里的 NioChannel 就不展开了，它包括了 socket 和 buffer
        NioChannel channel = nioChannels.pop();
        if (channel == null) {
            // 主要是创建读和写的两个 buffer，默认地，读和写 buffer 都是 8192 字节，8k
            SocketBufferHandler bufhandler = new SocketBufferHandler(
                    socketProperties.getAppReadBufSize(),
                    socketProperties.getAppWriteBufSize(),
                    socketProperties.getDirectBuffer());
            if (isSSLEnabled()) {
                channel = new SecureNioChannel(socket, bufhandler, selectorPool, this);
            } else {
                channel = new NioChannel(socket, bufhandler);
            }
        } else {
            channel.setIOChannel(socket);
            channel.reset();
        }

        // getPoller0() 会选取所有 poller 中的一个 poller
        getPoller0().register(channel);
    } catch (Throwable t) {
        ExceptionUtils.handleThrowable(t);
        try {
            log.error("",t);
        } catch (Throwable tt) {
            ExceptionUtils.handleThrowable(tt);
        }
        // Tell to close the socket
        return false;
    }
    return true;
}

public class Poller implements Runnable {

    public Poller() throws IOException {
        // 每个 poller 开启一个 Selector
        this.selector = Selector.open();
    }
    private Selector selector;
    // events 队列，此类的核心
    private final SynchronizedQueue<PollerEvent> events =
            new SynchronizedQueue<>();

    private volatile boolean close = false;
    private long nextExpiration = 0;//optimize expiration handling

    // 这个值后面有用，记住它的初始值为 0
    private AtomicLong wakeupCounter = new AtomicLong(0);

    private volatile int keyCount = 0;

    ...
}

public boolean events() {
    boolean result = false;

    PollerEvent pe = null;
    for (int i = 0, size = events.size(); i < size && (pe = events.poll()) != null; i++ ) {
        result = true;
        try {
            // 逐个执行 event.run()
            pe.run();
            // 该 PollerEvent 还得给以后用，这里 reset 一下(还是之前说过的缓存)
            pe.reset();
            if (running && !paused) {
                eventCache.push(pe);
            }
        } catch ( Throwable x ) {
            log.error("",x);
        }
    }
    return result;
}

public void run() {
    while (true) {

        boolean hasEvents = false;

        try {
            if (!close) {
                // 执行 events 队列中每个 event 的 run() 方法
                hasEvents = events();
                // wakeupCounter 的初始值为 0，这里设置为 -1
                if (wakeupCounter.getAndSet(-1) > 0) {
                    //if we are here, means we have other stuff to do
                    //do a non blocking select
                    keyCount = selector.selectNow();
                } else {
                    // timeout 默认值 1 秒
                    keyCount = selector.select(selectorTimeout);
                }
                wakeupCounter.set(0);
            }
            // 篇幅所限，我们就不说 close 的情况了
            if (close) {
                events();
                timeout(0, false);
                try {
                    selector.close();
                } catch (IOException ioe) {
                    log.error(sm.getString("endpoint.nio.selectorCloseFail"), ioe);
                }
                break;
            }
        } catch (Throwable x) {
            ExceptionUtils.handleThrowable(x);
            log.error("",x);
            continue;
        }
        //either we timed out or we woke up, process events first
        // 这里没什么好说的，顶多就再执行一次 events() 方法
        if ( keyCount == 0 ) hasEvents = (hasEvents | events());

        // 如果刚刚 select 有返回 ready keys，进行处理
        Iterator<SelectionKey> iterator =
            keyCount > 0 ? selector.selectedKeys().iterator() : null;
        // Walk through the collection of ready keys and dispatch
        // any active event.
        while (iterator != null && iterator.hasNext()) {
            SelectionKey sk = iterator.next();
            NioSocketWrapper attachment = (NioSocketWrapper)sk.attachment();
            // Attachment may be null if another thread has called
            // cancelledKey()
            if (attachment == null) {
                iterator.remove();
            } else {
                iterator.remove();
                // ※※※※※ 处理 ready key ※※※※※
                processKey(sk, attachment);
            }
        }//while

        //process timeouts
        timeout(keyCount,hasEvents);
    }//while

    getStopLatch().countDown();
}

public void register(final NioChannel socket) {
    socket.setPoller(this);
    NioSocketWrapper ka = new NioSocketWrapper(socket, NioEndpoint.this);
    socket.setSocketWrapper(ka);
    ka.setPoller(this);
    ka.setReadTimeout(getConnectionTimeout());
    ka.setWriteTimeout(getConnectionTimeout());
    ka.setKeepAliveLeft(NioEndpoint.this.getMaxKeepAliveRequests());
    ka.setSecure(isSSLEnabled());

    PollerEvent r = eventCache.pop();
    ka.interestOps(SelectionKey.OP_READ);//this is what OP_REGISTER turns into.

    // 注意第三个参数值 OP_REGISTER
    if ( r==null) r = new PollerEvent(socket,ka,OP_REGISTER);
    else r.reset(socket,ka,OP_REGISTER);

    // 添加 event 到 poller 中
    addEvent(r);
}

@Override
public void run() {
    // 对于新来的连接，前面我们说过，interestOps == OP_REGISTER
    if (interestOps == OP_REGISTER) {
        try {
            // 这步很关键！！！
            // 将这个新连接 SocketChannel 注册到该 poller 的 Selector 中，
            // 设置监听 OP_READ 事件，
            // 将 socketWrapper 设置为 attachment 进行传递(这个对象可是什么鬼都有，往上看就知道了)
            socket.getIOChannel().register(
                    socket.getPoller().getSelector(), SelectionKey.OP_READ, socketWrapper);
        } catch (Exception x) {
            log.error(sm.getString("endpoint.nio.registerFail"), x);
        }
    } else {
        /* else 这块不介绍，省得大家头大 */

        final SelectionKey key = socket.getIOChannel().keyFor(socket.getPoller().getSelector());
        try {
            if (key == null) {
                // The key was cancelled (e.g. due to socket closure)
                // and removed from the selector while it was being
                // processed. Count down the connections at this point
                // since it won't have been counted down when the socket
                // closed.
                socket.socketWrapper.getEndpoint().countDownConnection();
            } else {
                final NioSocketWrapper socketWrapper = (NioSocketWrapper) key.attachment();
                if (socketWrapper != null) {
                    //we are registering the key to start with, reset the fairness counter.
                    int ops = key.interestOps() | interestOps;
                    socketWrapper.interestOps(ops);
                    key.interestOps(ops);
                } else {
                    socket.getPoller().cancelledKey(key);
                }
            }
        } catch (CancelledKeyException ckx) {
            try {
                socket.getPoller().cancelledKey(key);
            } catch (Exception ignore) {}
        }
    }
}

protected void processKey(SelectionKey sk, NioSocketWrapper attachment) {
    try {
        if ( close ) {
            cancelledKey(sk);
        } else if ( sk.isValid() && attachment != null ) {
            if (sk.isReadable() || sk.isWritable() ) {
                // 忽略 sendfile
                if ( attachment.getSendfileData() != null ) {
                    processSendfile(sk,attachment, false);
                } else {
                    // unregister 相应的 interest set，
                    // 如接下来是处理 SocketChannel 进来的数据，那么就不再监听该 channel 的 OP_READ 事件
                    unreg(sk, attachment, sk.readyOps());
                    boolean closeSocket = false;
                    // Read goes before write
                    if (sk.isReadable()) {
                        // 处理读
                        if (!processSocket(attachment, SocketEvent.OPEN_READ, true)) {
                            closeSocket = true;
                        }
                    }
                    if (!closeSocket && sk.isWritable()) {
                        // 处理写
                        if (!processSocket(attachment, SocketEvent.OPEN_WRITE, true)) {
                            closeSocket = true;
                        }
                    }
                    if (closeSocket) {
                        cancelledKey(sk);
                    }
                }
            }
        } else {
            //invalid key
            cancelledKey(sk);
        }
    } catch ( CancelledKeyException ckx ) {
        cancelledKey(sk);
    } catch (Throwable t) {
        ExceptionUtils.handleThrowable(t);
        log.error("",t);
    }
}

public boolean processSocket(SocketWrapperBase<S> socketWrapper,
        SocketEvent event, boolean dispatch) {
    try {
        if (socketWrapper == null) {
            return false;
        }
        SocketProcessorBase<S> sc = processorCache.pop();
        if (sc == null) {
            // 创建一个 SocketProcessor 的实例
            sc = createSocketProcessor(socketWrapper, event);
        } else {
            sc.reset(socketWrapper, event);
        }
        Executor executor = getExecutor();
        if (dispatch && executor != null) {
            // 将任务放到之前建立的 worker 线程池中执行
            executor.execute(sc);
        } else {
            sc.run(); // ps: 如果 dispatch 为 false，那么就当前线程自己执行
        }
    } catch (RejectedExecutionException ree) {
        getLog().warn(sm.getString("endpoint.executor.fail", socketWrapper) , ree);
        return false;
    } catch (Throwable t) {
        ExceptionUtils.handleThrowable(t);
        // This means we got an OOM or similar creating a thread, or that
        // the pool and its queue are full
        getLog().error(sm.getString("endpoint.process.fail"), t);
        return false;
    }
    return true;
}

@Override
protected SocketProcessorBase<NioChannel> createSocketProcessor(
        SocketWrapperBase<NioChannel> socketWrapper, SocketEvent event) {
    return new SocketProcessor(socketWrapper, event);
}
