Java中的锁主要有:synchronized锁和JUC(java.util.concurrent)locks包中的锁。synchronized锁是JVM的内置锁,底层通过"monitorenter"和"monitorexit"字节码指令实现。JUC中的锁支持公平锁(synchronized锁是非公平锁),读写锁,锁请求中断,锁请求超时等。今天要说的AbstractQueuedSynchronizer(AQS)是JUC锁的基础。JUC中的ReentrantLock,ReentrantReadWriteLock,Semaphore,CountDownLatch等都用到了AQS作为同步器。可以说AQS是JUC(java.util.concurrent)的基础。

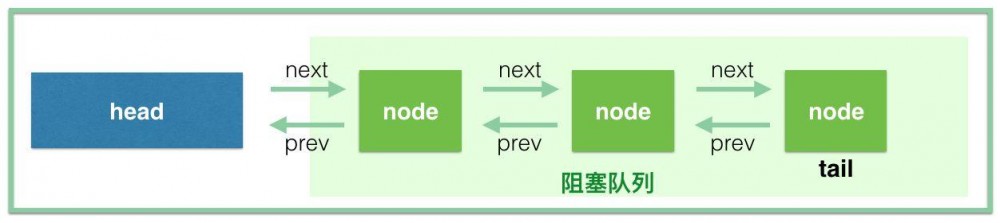

AQS本质上是一个FIFO的队列,它的等待队列是“CLH”(Craig, Landin, and Hagersten)队列的变种。CLH队列通常用作自旋锁(spinlocks)。
AQS使用一个int的state来记录当前锁的状态:
private volatile int state; // 状态 protected final int getState() { return state; } protected final void setState(int newState) { state = newState; } protected final boolean compareAndSetState(int expect, int update) { // 通过CAS设置状态 // See below for intrinsics setup to support this return unsafe.compareAndSwapInt(this, stateOffset, expect, update); } 复制代码
AQS支持两种锁模式:独占锁和共享锁。如果当前AQS独占锁被获取后,在独占锁线程未释放之前,其他的独占锁和共享锁请求都将被阻塞;如果共享锁被获取,独占锁请求将被阻塞,而其他的共享锁请求可以成功。在读写锁ReentrantReadWriteLock中,AQS的高16位表示读锁(共享锁)状态,低16位表示写锁(独占锁)状态。
static final class Node { // 标识当前节点在等待共享锁 static final Node SHARED = new Node(); // 标识当前节点在等待独占锁 static final Node EXCLUSIVE = null; // 当前节点等待被中断或者超时 static final int CANCELLED = 1; // 当前节点等待取消或者释放锁之后需要unpark它的后继节点 static final int SIGNAL = -1; // 当前节点在condition queue中等待 static final int CONDITION = -2; // 只有头节点才能设置改状态,当请求处于共享状态下时,当前线程被唤醒之后可能还需要唤醒其他线程。后续节点需要传播该唤醒动作 static final int PROPAGATE = -3; // 当前节点的等待状态 volatile int waitStatus; // 前驱等待节点 volatile Node prev; // 后置等待节点 volatile Node next; // 当前节点关联的线程 volatile Thread thread; // 指向condition queue等待的节点,或者指向SHARE节点,表明当前处于共享模式 Node nextWaiter; // 当前节点是否等待共享锁 final boolean isShared() { return nextWaiter == SHARED; } final Node predecessor() throws NullPointerException { Node p = prev; if (p == null) throw new NullPointerException(); else return p; } Node() { // Used to establish initial head or SHARED marker } Node(Thread thread, Node mode) { // Used by addWaiter this.nextWaiter = mode; this.thread = thread; } Node(Thread thread, int waitStatus) { // Used by Condition this.waitStatus = waitStatus; this.thread = thread; } } 复制代码
Node中定义了CANCELLED、SIGNAL、CONDITION和PROPAGATE四种状态:
AQS中已经实现的与加锁和解锁有关的方法如下:
方法 | 作用 |
---|---|
acquire(int) | 获取独占锁,不可中断,可能线程会进入队列中等待 |
acquireInterruptibly(int) | 获取独占锁,可以中断 |
tryAcquireNanos(int, long) | 在指定时间之内尝试获取独占锁 |
release(int) | 释放独占锁 |
acquireShared(int) | 获取共享锁,不可中断 |
acquireSharedInterruptibly(int) | 获取共享锁,可以中断 |
tryAcquireSharedNanos(int, long) | 在指定时间之内尝试获取共享锁,可以中断 |
releaseShared(int) | 释放共享锁 |
acquire用于获取独占锁,请求不可中断,首先会通过tryAcquire方法获取锁,如果获取失败,则进入等待队列中。tryAcquire方法在AQS中默认抛出一个异常,需要子类去实现具体的乐观获取独占锁的方式:
protected boolean tryAcquire(int arg) { throw new UnsupportedOperationException(); } 复制代码
如果tryAcquire获取失败,则通过addWaiter方法生成一个关联当前线程的waiter节点放入队列中,再通过acquireQueued方法获取锁。
// 将当前线程放入队列中等待 private Node addWaiter(Node mode) { Node node = new Node(Thread.currentThread(), mode); // 创建关联当前线程的等待节点 // Try the fast path of enq; backup to full enq on failure Node pred = tail; if (pred != null) { node.prev = pred; if (compareAndSetTail(pred, node)) { // 通过CAS将节点放入队列的尾部 pred.next = node; return node; } } enq(node); return node; } final boolean acquireQueued(final Node node, int arg) { boolean failed = true; try { boolean interrupted = false; for (;;) { // 循环重试 final Node p = node.predecessor(); if (p == head && tryAcquire(arg)) { // head不关联任何线程,是一个dummy节点,如果当前节点的前置节点是head,则通过tryAcquire方法尝试获取锁 setHead(node); // 获取锁成功,设置当前节点为head,在setHead中会将node的thread和prev指针置为null。因为head节点不关联任何线程 p.next = null; // help GC failed = false; return interrupted; } // shouldParkAfterFailedAcquire判断当前节点获取锁失败后是否需要挂起当前线程(park),如果需要挂起,则通过parkAndCheckInterrupt方法挂起线程(LockSupport.park),然后清除线程的中断状态(Thread.interrupted)。 if (shouldParkAfterFailedAcquire(p, node) && parkAndCheckInterrupt()) interrupted = true; // 返回线程已经被中断 } } finally { if (failed) // 最后如果失败,则取消锁请求 cancelAcquire(node); } } 复制代码
acquireQueued方法中是一个循环,如果判断当前节点是队列中的第一个节点并且通过tryAcquire获取到锁之后通过setHead将当前节点设置为head,在setHead方法中将head的thread和prev指针置为null,因为head不会关联任何线程。如果获取锁失败,则通过shouldParkAfterFailedAcquire判断当前节点获取锁失败后是否需要挂起当前线程,如果需要挂起当前线程,则通过parkAndCheckInterrupt方法来挂起当前线程,等待它的predecessor节点唤醒:
private static boolean shouldParkAfterFailedAcquire(Node pred, Node node) { int ws = pred.waitStatus; if (ws == Node.SIGNAL) // 当前节点的predecessor节点的waitStatus为SIGNAL,当predecessor释放锁时会唤醒当前线程 /* * This node has already set status asking a release * to signal it, so it can safely park. */ return true; if (ws > 0) { // 找到waitStatus不是CANCELLED的节点 /* * Predecessor was cancelled. Skip over predecessors and * indicate retry. */ do { node.prev = pred = pred.prev; } while (pred.waitStatus > 0); pred.next = node; } else { /* * waitStatus must be 0 or PROPAGATE. Indicate that we * need a signal, but don't park yet. Caller will need to * retry to make sure it cannot acquire before parking. */ compareAndSetWaitStatus(pred, ws, Node.SIGNAL); // 设置predecessor的waitStatus为SIGNAL,代表当前节点需要predecessor的signal信号,但是当前线程还未挂起,线程需要在挂起之前需要重试 } return false; } 复制代码

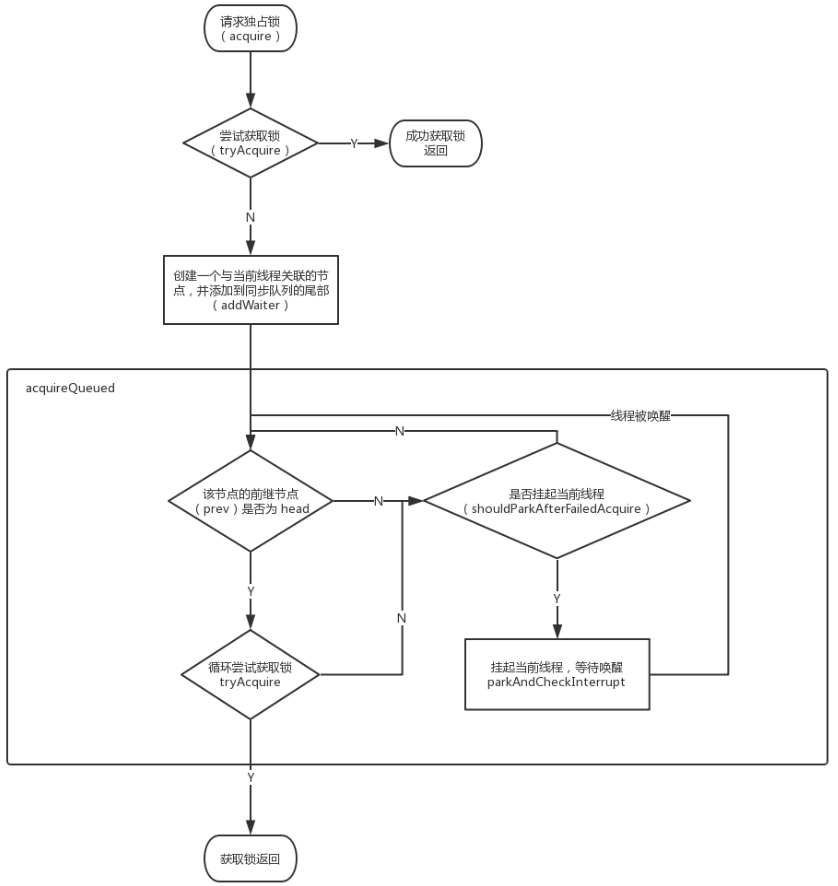

下面是获取独占锁的流程图:
public final boolean release(int arg) { if (tryRelease(arg)) { // tryRelease由子类复写 Node h = head; if (h != null && h.waitStatus != 0) unparkSuccessor(h); // 唤醒后继节点 return true; } return false; } private void unparkSuccessor(Node node) { /* * If status is negative (i.e., possibly needing signal) try * to clear in anticipation of signalling. It is OK if this * fails or if status is changed by waiting thread. */ int ws = node.waitStatus; if (ws < 0) compareAndSetWaitStatus(node, ws, 0); /* * Thread to unpark is held in successor, which is normally * just the next node. But if cancelled or apparently null, * traverse backwards from tail to find the actual * non-cancelled successor. */ // 如果当前节点的next节点为空或者next节点等待被取消则从从tail开始寻找可被唤醒的节点(waitStatus <= 0) Node s = node.next; if (s == null || s.waitStatus > 0) { s = null; for (Node t = tail; t != null && t != node; t = t.prev) if (t.waitStatus <= 0) s = t; } if (s != null) LockSupport.unpark(s.thread); // 唤醒线程 } 复制代码
独占锁的释放过程比较简单:

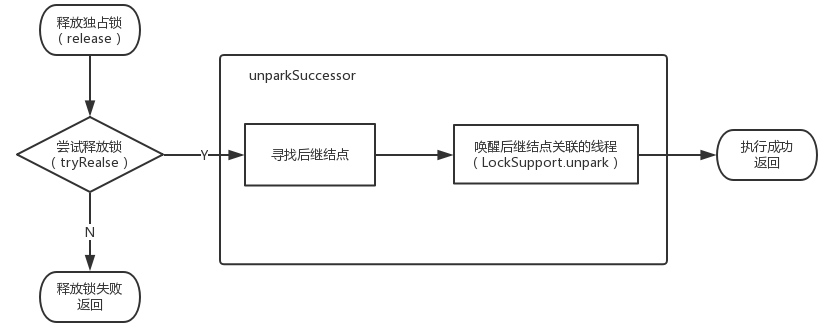

释放独占锁的流程图如下所示:
public final void acquireShared(int arg) { if (tryAcquireShared(arg) < 0) // 首先tryAcquireShared,如果成功则直接return,否则doAcquireShared doAcquireShared(arg); } private void doAcquireShared(int arg) { final Node node = addWaiter(Node.SHARED); // 将当前线程包装成Node放入队列中 boolean failed = true; try { boolean interrupted = false; for (;;) { // 循环重试 final Node p = node.predecessor(); // 当前节点的前置节点 if (p == head) { // 如果当前节点的predecessor节点为head,则tryAcquireShared int r = tryAcquireShared(arg); if (r >= 0) { setHeadAndPropagate(node, r); // 设置当前节点为头节点,并判断后继节点是否需要唤醒 p.next = null; // help GC if (interrupted) selfInterrupt(); failed = false; return; } } // 前面说过这段代码,shouldParkAfterFailedAcquire判断当前节点获取锁失败后是否需要挂起当前线程(park),如果需要挂起,则通过parkAndCheckInterrupt方法挂起线程(LockSupport.park),然后清除线程的中断状态(Thread.interrupted)。 if (shouldParkAfterFailedAcquire(p, node) && parkAndCheckInterrupt()) interrupted = true; } } finally { if (failed) cancelAcquire(node); } } 复制代码
首先通过tryAcquireShared方法来获取共享锁,如果获取成功,则直接返回。否则将当前线程放入等待队列中,循环重试获取锁:如果当前节点的前置节点为head,则通过tryAcquireShared来获取锁,如果获取成功,则设置头节点,并判断后续节点是否需要唤醒;如果获取失败,则判断当前节点是否需要(shouldParkAfterFailedAcquire)挂起(LockSupport.lock),如果需要挂起线程,则通过LockSupport.park方法将当前线程挂起。 下面是获取共享锁的流程图:
public final boolean releaseShared(int arg) { if (tryReleaseShared(arg)) { // 如果tryReleaseShared成功则直接返回,否则doReleaseShared。tryReleaseShared需要子类复写该方法 doReleaseShared(); return true; } return false; } private void doReleaseShared() { /* * Ensure that a release propagates, even if there are other * in-progress acquires/releases. This proceeds in the usual * way of trying to unparkSuccessor of head if it needs * signal. But if it does not, status is set to PROPAGATE to * ensure that upon release, propagation continues. * Additionally, we must loop in case a new node is added * while we are doing this. Also, unlike other uses of * unparkSuccessor, we need to know if CAS to reset status * fails, if so rechecking. */ for (;;) { Node h = head; if (h != null && h != tail) { int ws = h.waitStatus; if (ws == Node.SIGNAL) { // waitStatus为SIGNAL的状态,需要唤醒后续节点 if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0)) // CAS充实将当前节点状态设为0 continue; // loop to recheck cases unparkSuccessor(h); // 唤醒后继节点 } else if (ws == 0 && !compareAndSetWaitStatus(h, 0, Node.PROPAGATE)) // 状态为0,没有后续节点需要唤醒,CAS设置状态为PROPAGATE continue; // loop on failed CAS } if (h == head) // loop if head changed break; } } 复制代码

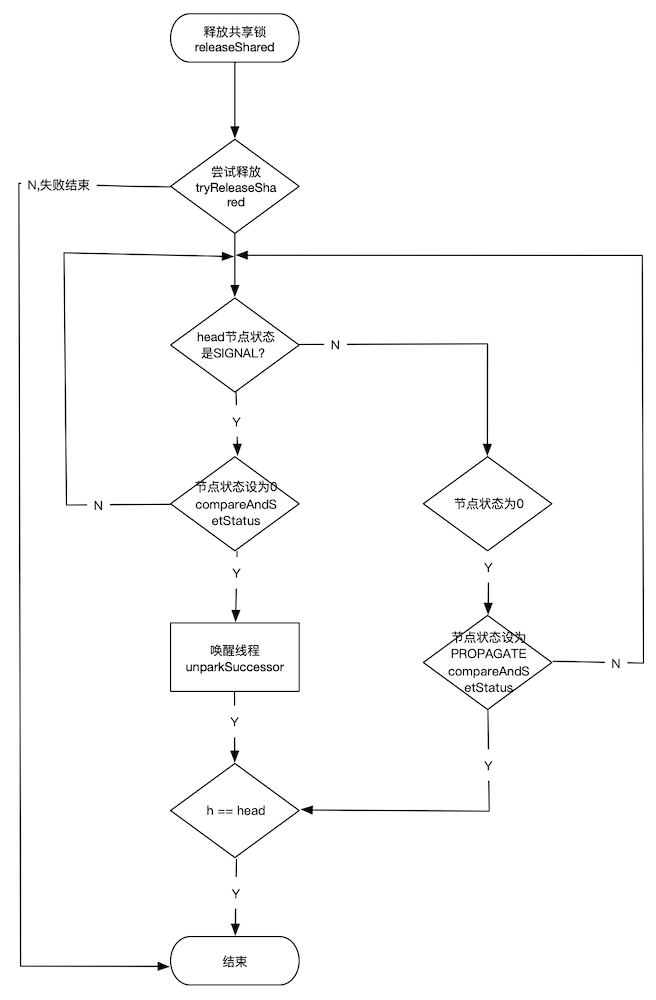

doReleaseShared方法中,判断当前节点的waitStatus,如果为SIGNAL,说明需要唤醒后续节点,唤醒之前先CAS重试把节点状态修改为0,然后unparkSuccessor唤醒后续节点。如果当前节点的waitStatus为0,则说明后续没有节点需要唤醒,CAS重试将当前节点waitStatus状态修改为PROPAGATE。 下图是释放共享锁的流程图:
AQS支持加锁超时和中断机制,这也是JUC锁相对synchronized锁的优势。AQS支持独占锁和共享锁的超时和中断, public final boolean tryAcquireNanos(int arg, long nanosTimeout)
用于在超时时间之内获取独占锁, public final boolean tryAcquireSharedNanos(int arg, long nanosTimeout)
用于在超时时间之内获取共享锁。
public final boolean tryAcquireNanos(int arg, long nanosTimeout) throws InterruptedException { if (Thread.interrupted()) // 支持响应中断请求,首先判断当前线程是否被中断,如果中断了,则抛出异常,结束 throw new InterruptedException(); // tryAcquire需要子类实现,主要的加锁逻辑在doAcquireNanos方法中 return tryAcquire(arg) || doAcquireNanos(arg, nanosTimeout); } 复制代码
tryAcquireNanos可以响应中断请求,首先检查线程是否被中断,如果被中断,则直接抛出异常,加锁失败。否则先通过tryAcquire尝试获取锁,如果成功则直接返回。如果失败,则通过doAcquireNanos来加锁。
private boolean doAcquireNanos(int arg, long nanosTimeout) throws InterruptedException { if (nanosTimeout <= 0L) return false; final long deadline = System.nanoTime() + nanosTimeout; // 计算本次请求的deadline final Node node = addWaiter(Node.EXCLUSIVE); // 将当前线程加入等待队列中 boolean failed = true; try { for (;;) { final Node p = node.predecessor(); if (p == head && tryAcquire(arg)) { // 如果当前节点的predecessor为head,则tryAcquire尝试获取锁,如果成功则设置当前节点为头节点,返回true setHead(node); // 设置当前节点为head,设置head节点的thread和prev指针为null p.next = null; // help GC failed = false; return true; } nanosTimeout = deadline - System.nanoTime(); // 截止deadline之前本次请求还剩余的时间 if (nanosTimeout <= 0L) // nanosTimeout小于等于0,说明本次deadline已经到了,返回false,加锁失败 return false; // 本次加锁失败,通过shouldParkAfterFailedAcquire判断是否需要挂起当前线程,如果需要挂起向前线程,并且nanosTimeout大于spinForTimeoutThreshold,则挂起当前线程nanosTime。 // 这里的spinForTimeoutThreshold相当于一个挂起线程的最小时间阈值,如果小于等于这个时间,则直接重试就可以了,而不是挂起线程,因为挂起和唤醒线程是有性能开销的 if (shouldParkAfterFailedAcquire(p, node) && nanosTimeout > spinForTimeoutThreshold) LockSupport.parkNanos(this, nanosTimeout); // 挂起线程 if (Thread.interrupted()) // 响应中断请求 throw new InterruptedException(); } } finally { if (failed) cancelAcquire(node); } } 复制代码
根据用户设置的超时时间,计算本次加锁的deadline,在循环体中判断当前时间是否已经超过deadline,如果超过返回false,加锁失败。循环体中首先判断当前节点的predecessor是不是head,如果是head,则尝试加锁,如果加锁成功则设置当前节点为head。如果加锁失败,计算本次离deadline还剩多长时间,如果已经到了deadline则返回false,加锁失败。如果还未到deadline,如果shouldParkAfterFailedAcquire为true并且nanosTimeout大于spinForTimeoutThreshold则挂起当前线程。否则先响应中断请求再循环重试。 流程图如下:
