dubbo设置连接zookeeper权限

  1. 前言

关于zookeeper知之甚少,少之又少,只是作为dubbo的注册中心连接,某天某检测机构随手一扫然后说你们zookeeper 没有设置任何安全验证,当时就懵了,还有这种操作。

  1. zookeeper设置ACL 权限

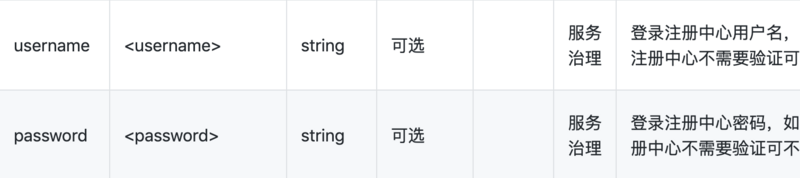

查阅 dubbo 的官方文档 dubbo-registry 发现连接注册中心的时候是可以选择是否需要用户名密码,接下来就是要如何设置zookeeper的用户名跟密码

dubbo设置连接zookeeper权限

进入zookeeper的bin文件夹运行客户端

./zkCli.sh

-help 查看指令

[zk: localhost:2181(CONNECTED) 0] -help
ZooKeeper -server host:port cmd args
    stat path [watch]
    set path data [version]
    ls path [watch]
    delquota [-n|-b] path
    ls2 path [watch]
    setAcl path acl
    setquota -n|-b val path
    history
    redo cmdno
    printwatches on|off
    delete path [version]
    sync path
    listquota path
    rmr path
    get path [watch]
    create [-s] [-e] path data acl
    addauth scheme auth
    quit
    getAcl path
    close
    connect host:port

如果在dubbo中没有指定分组的话,dubbo会默认生成一个分组dubbo,也就是在zookeeper下面会有个子节点dubbo

也可以自己手动创建

create /dubbo

Zookeeper的ACL通过 scheme:id:permissions 来构成权限

scheme这边主要用到2种方式,另外还有设置ip和host,这几个没用到的这边就先不细说

1. auth 方式(密码明文)

添加用户名和密码

addauth digest onepay:onepay

授予/dubbo auth权限

setAcl /dubbo auth:onepay:onepay:rwadc

配置 dubbo 连接 zookeeper 配置文件

<dubbo:registry protocol ="zookeeper" address="127.0.0.1:2181"  username="onepay" password="onepay" client="curator" />

2. digest 授权方式(方式跟auth差不多)

授予/dubbo digest权限

setAcl /dubbo digest:onepay:T+17ezPAW0kDvN6elPD5Tdzdm00=:cdrwa
addauth digest onepay:onepay

配置zookeeper配置文件

<dubbo:registry protocol ="zookeeper" address="127.0.0.1:2181"  username="onepay" password="onepay" client="curator" />

digest 密码生成方式:把密码进行sha1编码然后对结果进行base64编码

BASE64(SHA1(password))

查看zookeeper源码发现,其实包里面已经有现成的方法,直接调用这个类生成就行,

idPassword字符串格式: username:password

org.apache.zookeeper.server.auth.DigestAuthenticationProvider

static public String generateDigest(String idPassword)
            throws NoSuchAlgorithmException {
        String parts[] = idPassword.split(":", 2);
        byte digest[] = MessageDigest.getInstance("SHA1").digest(
                idPassword.getBytes());
        return parts[0] + ":" + base64Encode(digest);
    }
还有一个点就是要设置 client="curator"

通过ZookeeperRegistry发现zookeeper的连接是通过zookeeperTransporter进行创建,

zookeeperTransporter接口分别由CuratorZookeeperTransporterZkclientZookeeperTransporter实现,这2个分别创建

CuratorZookeeperClient和ZkclientZookeeperClient

public class ZkclientZookeeperTransporter implements ZookeeperTransporter {

    public ZookeeperClient connect(URL url) {
        return new ZkclientZookeeperClient(url);
    }

}
public class CuratorZookeeperTransporter implements ZookeeperTransporter {

    public ZookeeperClient connect(URL url) {
        return new CuratorZookeeperClient(url);
    }

}

查看源码发现ZkclientZookeeperClient是没有进行设置zookeeper的auth的账号和密码,

CuratorZookeeperClient有去获取配置的相关用户信息。

public ZkclientZookeeperClient(URL url) {
        super(url);
        client = new ZkClient(url.getBackupAddress());
        client.subscribeStateChanges(new IZkStateListener() {
            public void handleStateChanged(KeeperState state) throws Exception {
                ZkclientZookeeperClient.this.state = state;
                if (state == KeeperState.Disconnected) {
                    stateChanged(StateListener.DISCONNECTED);
                } else if (state == KeeperState.SyncConnected) {
                    stateChanged(StateListener.CONNECTED);
                }
            }
            public void handleNewSession() throws Exception {
                stateChanged(StateListener.RECONNECTED);
            }
        });
    }
public CuratorZookeeperClient(URL url) {
        super(url);
        try {
            Builder builder = CuratorFrameworkFactory.builder()
                    .connectString(url.getBackupAddress())
                    .retryPolicy(new RetryNTimes(Integer.MAX_VALUE, 1000))
                    .connectionTimeoutMs(5000);
            String authority = url.getAuthority();
            if (authority != null && authority.length() > 0) {
                builder = builder.authorization("digest", authority.getBytes());
            }
            client = builder.build();
            client.getConnectionStateListenable().addListener(new ConnectionStateListener() {
                public void stateChanged(CuratorFramework client, ConnectionState state) {
                    if (state == ConnectionState.LOST) {
                        CuratorZookeeperClient.this.stateChanged(StateListener.DISCONNECTED);
                    } else if (state == ConnectionState.CONNECTED) {
                        CuratorZookeeperClient.this.stateChanged(StateListener.CONNECTED);
                    } else if (state == ConnectionState.RECONNECTED) {
                        CuratorZookeeperClient.this.stateChanged(StateListener.RECONNECTED);
                    }
                }
            });
            client.start();
        } catch (IOException e) {
            throw new IllegalStateException(e.getMessage(), e);
        }
    }

cdrwa表示zookeeper的五种权限

CREATE: 创建子节点

READ: 获取节点数据或者当前节点的子节点列表

WRITE: 节点设置数据

DELETE: 删除子节点

ADMIN: 节点设置权限

如果用户名密码错误,或者没设置,会报KeeperErrorCode = NoAuth错误

注:停止zookeeper,清除zookeeper文件夹下面的logs,或者用delete 删除节点 就可以清除权限

以上

参考文档

Apache Zookeeper Setting ACL
