由于项目的关系,系统需要集成oAuth2.0功能。关于OAuth2.0的概念参考文章理解OAuth 2.0,或者OAuth 2.0最简向导
我们系统使用的Spring cloud G版本,引入依赖jar包
<!-- oAuth2 --> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-oauth2</artifactId> </dependency> 复制代码
OAuth 2.0 定义了四种授权方式
在Spring OAuth2.0中除了定义以上四种授权模式外,还定义一个特殊的授权模式:刷新 四种模式和refresh模式对应的处理类是:
○ AuthorizationCodeServices:用于“授权码模式( authorization code )”如何保存"授权码",默认有两种实现:
○ TokenStore:存储token的方式,常用有以下几种实现
○ ClientDetailsService:客户端账号管理
○ UserDetailsService:如何加载用户账号
○ 其他
网上的案列基本是使用JdbcClientDetailsService 和 InMemoryClientDetailsService 实现客户端账号。这些都不符合我们的要求。JdbcClientDetailsService 必须按照的标准建立相关的数据库表,我们的已经有自己的账户表,不能使用这些创建的表。

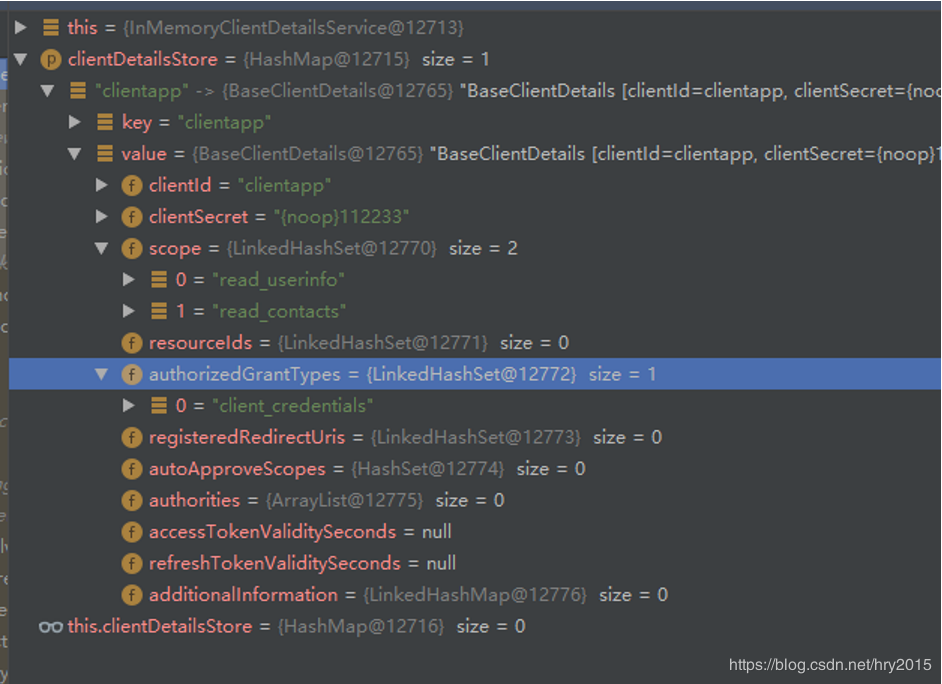

我们首先研究InMemoryClientDetailsService里返回的ClientDetails实例值如下:
我们参考JdbcClientDetailsService 和 InMemoryClientDetailsService代码,实现自定义ClientDetailsService。关键代码如下
@Service public class MyClientDetailsService implements ClientDetailsService { @Override public ClientDetails loadClientByClientId(String clientId) throws ClientRegistrationException { System.out.println("clientId = " + clientId); // 实际使用时,这里增加读数据库的操作,根据clientId获取账户信息,并根据下面代码的方式生成BaseClientDetails对象即可 BaseClientDetails baseClientDetails = new BaseClientDetails(); baseClientDetails.setClientId("clientapp"); // secret密码配置从 Spring Security 5.0开始必须以 {加密方式}+加密后的密码 这种格式填写 /* * 当前版本5新增支持加密方式: * bcrypt - BCryptPasswordEncoder (Also used for encoding) * ldap - LdapShaPasswordEncoder * MD4 - Md4PasswordEncoder * MD5 - new MessageDigestPasswordEncoder("MD5") * noop - NoOpPasswordEncoder * pbkdf2 - Pbkdf2PasswordEncoder * scrypt - SCryptPasswordEncoder * SHA-1 - new MessageDigestPasswordEncoder("SHA-1") * SHA-256 - new MessageDigestPasswordEncoder("SHA-256") * sha256 - StandardPasswordEncoder */ baseClientDetails.setClientSecret("{noop}112233"); // 不可以设置为null // baseClientDetails.setAutoApproveScopes(null); List<String> scopeList = new ArrayList<>(); scopeList.add("read_userinfo"); scopeList.add("read_contacts"); baseClientDetails.setScope(scopeList); baseClientDetails.setResourceIds(null); List<String> grantTypeList = new ArrayList<>(); grantTypeList.add("client_credentials"); // 运行刷新token grantTypeList.add("refresh_token"); baseClientDetails.setAuthorizedGrantTypes(grantTypeList); baseClientDetails.setRegisteredRedirectUri(Sets.newHashSet()); // 不可以设置为null // baseClientDetails.setAuthorities(null); // 设置accessToken和refreshToken有效期 baseClientDetails.setAccessTokenValiditySeconds(1000); baseClientDetails.setRefreshTokenValiditySeconds(1000); baseClientDetails.setAdditionalInformation(Maps.newHashMap()); return baseClientDetails; } } 复制代码
在OAuth2AuthorizationServer中配置客户端的账户的类
@Configuration @EnableAuthorizationServer public class OAuth2AuthorizationServer extends AuthorizationServerConfigurerAdapter { @Autowired private MyClientDetailsService myClientDetailsService; @Autowired private RedisTokenStore redisTokenStore; @Override public void configure(ClientDetailsServiceConfigurer clients) throws Exception { // 配置客户端的账户的类 clients.withClientDetails(myClientDetailsService); } 复制代码
测试
curl -X POST "http://10.216.33.211:10808/com-oauth/oauth/token" --user clientapp:112233 -d "grant_type=client_credentials&scope=read_contacts 返回: {"access_token":"9ba822ce-3c1b-461f-85bb-722e83c30248","token_type":"bearer","expires_in":28068,"scope":"read_contacts"} 复制代码
@Configuration @EnableWebSecurity public class SecurityConfiguration extends WebSecurityConfigurerAdapter { @Override protected void configure(AuthenticationManagerBuilder auth) throws Exception { auth.inMemoryAuthentication() .withUser("user_1").password("123456").authorities("USER") .and() .withUser("user_2").password("123456").authorities("USER"); } @Bean @Override public AuthenticationManager authenticationManagerBean() throws Exception { AuthenticationManager manager = super.authenticationManagerBean(); return manager; } } 复制代码
使用自定义用户账号我们要实现自己的系统,实现UserDetailsService 接口,根据用户名称,如果验证成功,则返回UserDetails 对象。实际应用将这里增加访问自己用户账号的功能即可。
@Service public class MyUserDetailsService implements UserDetailsService { @Override public UserDetails loadUserByUsername(String s) throws UsernameNotFoundException { System.out.println("name=" + s); // 获取用户权限列表 List<GrantedAuthority> authorities = new ArrayList(); authorities.add(new SimpleGrantedAuthority("admin")); authorities.add(new SimpleGrantedAuthority("default")); if(s.equals("hry")) { String name = "hry"; String password = "1024"; User user = new User(name, password, true, true, true, true, authorities); return user; }else { String name = "default"; String password = "1024"; User user = new User(name, password, true, true, true, true, authorities); return user; } } } 复制代码
@EnableWebSecurity 注解类,并实现WebSecurityConfigurerAdapter 的configure(AuthenticationManagerBuilder auth)设置UserDetailsService 的对象
@Configuration @EnableWebSecurity public class MyWebSecurityConfigurerAdapter extends WebSecurityConfigurerAdapter { @Autowired private MyUserDetailsService myUserDetailsService; @Bean(name = BeanIds.AUTHENTICATION_MANAGER) @Override protected AuthenticationManager authenticationManager() throws Exception { return super.authenticationManager(); } @Override protected void configure(AuthenticationManagerBuilder auth) throws Exception { super.configure(auth); auth.userDetailsService(myUserDetailsService); } } 复制代码
token的存储由TokenStore实现。TokenStore:存储token的方式,常用有以下几种实现
我们使用RedisTokenStore实现redis存储 @EnableAuthorizationServer:标记这是权限服务器
@Configuration // enables the Authorization server configuration @EnableAuthorizationServer public class OAuth2AuthorizationServer extends AuthorizationServerConfigurerAdapter { @Autowired private RedisTokenStore redisTokenStore; @Override public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception { super.configure(endpoints); // 默认情况配置在缓存中,如果配置这个,则存储在redis中 endpoints.tokenStore(redisTokenStore); } } 复制代码
初始化RedisTokenStore
@Bean public RedisTokenStore createRedisTokenStore(RedisConnectionFactory connectionFactory){ return new RedisTokenStore(connectionFactory); } 复制代码
