publisher-confirms,实现一个监听器用于监听Broker端给我们返回的确认请求: RabbitTemplate.ConfirmCallback
publisher-returns,保证消息对Broker端是可达的,如果出现路由键不可达的情况,则使用监听器对不可达的消息进行后续的处理,保证消息的路由成功: RabbitTemplate.ReturnCallback
注意一点,在发送消息的时候对template进行配置mandatory=true保证监听有效 生产端还可以配置其他属性,比如发送重试,超时时间,次数,间隔等
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.cp</groupId> <artifactId>springboot-producer</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>springboot-producer</name> <description>springboot-producer</description> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.0.4.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-amqp</artifactId> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project> 复制代码
@Component public class RabbitSender { //自动注入RabbitTemplate模板类 @Autowired private RabbitTemplate rabbitTemplate; //回调函数: confirm确认 final ConfirmCallback confirmCallback = new RabbitTemplate.ConfirmCallback() { @Override public void confirm(CorrelationData correlationData, boolean ack, String cause) { System.err.println("correlationData: " + correlationData); System.err.println("ack: " + ack); if(!ack){ //可以进行日志记录、异常处理、补偿处理等 System.err.println("异常处理...."); }else { //更新数据库,可靠性投递机制 } } }; //回调函数: return返回 final ReturnCallback returnCallback = new RabbitTemplate.ReturnCallback() { @Override public void returnedMessage(org.springframework.amqp.core.Message message, int replyCode, String replyText, String exchange, String routingKey) { System.err.println("return exchange: " + exchange + ", routingKey: " + routingKey + ", replyCode: " + replyCode + ", replyText: " + replyText); } }; //发送消息方法调用: 构建Message消息 public void send(Object message, Map<String, Object> properties) throws Exception { MessageHeaders mhs = new MessageHeaders(properties); Message msg = MessageBuilder.createMessage(message, mhs); rabbitTemplate.setConfirmCallback(confirmCallback); rabbitTemplate.setReturnCallback(returnCallback); //id + 时间戳 全局唯一 用于ack保证唯一一条消息,这边做测试写死一个。但是在做补偿策略的时候,必须保证这是全局唯一的消息 CorrelationData correlationData = new CorrelationData("1234567890"); rabbitTemplate.convertAndSend("exchange-1", "springboot.abc", msg, correlationData); } } 复制代码
spring.rabbitmq.addresses=localhost:5672 spring.rabbitmq.username=guest spring.rabbitmq.password=guest spring.rabbitmq.virtual-host=/vhost_cp spring.rabbitmq.connection-timeout=15000 spring.rabbitmq.publisher-confirms=true spring.rabbitmq.publisher-returns=true spring.rabbitmq.template.mandatory=true 复制代码

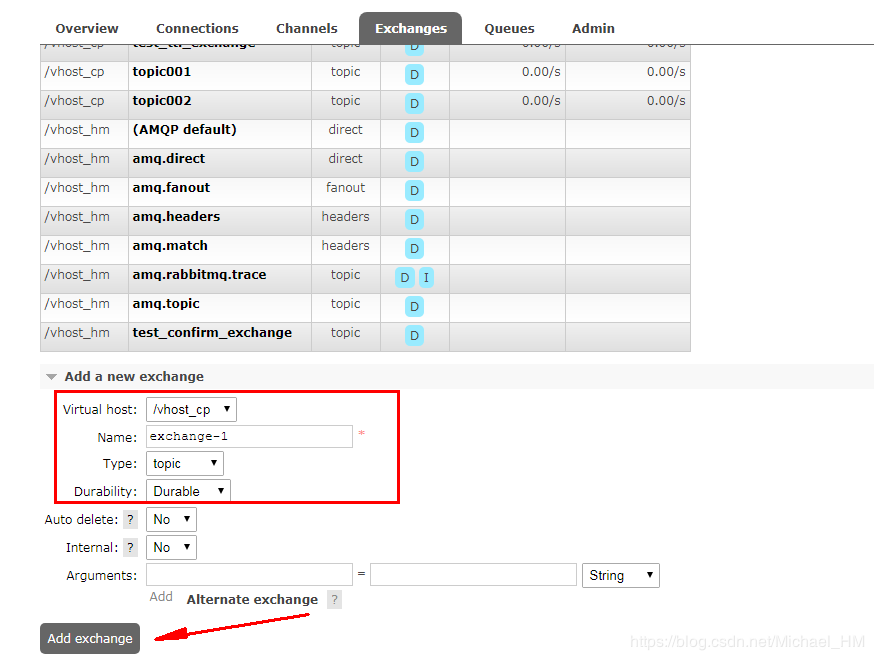

添加Exchange

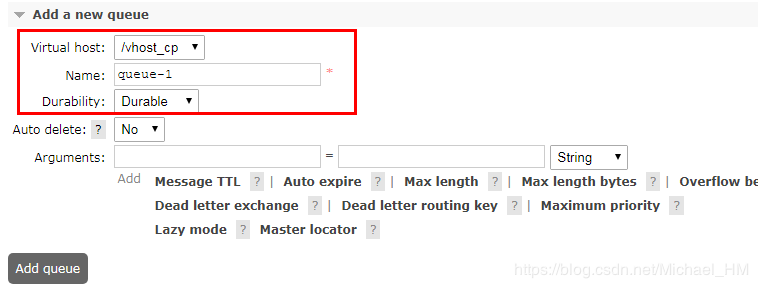

添加Queue

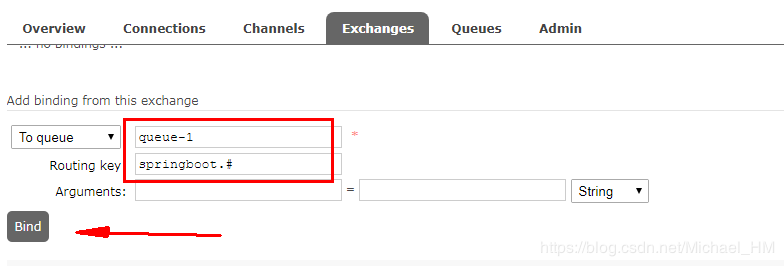

Exchange绑定Queue
修改routingKey,springboot改为spring,则进入的是returnCallback方法
correlationData: CorrelationData [id=1234567890] ack: false 异常处理.... 复制代码
这是由于我们在测试方法中进行测试,当测试方法结束,rabbitmq相关的资源也就关闭了,虽然我们的消息发送出去,但异步的ConfirmCallback却由于资源关闭而出现了上面的问题。 加入Thread.sleep()即可解决。
@Test public void testSender1() throws Exception { Map<String, Object> properties = new HashMap<>(); properties.put("number", "12345"); properties.put("send_time", simpleDateFormat.format(new Date())); rabbitSender.send("Hello RabbitMQ For Spring Boot!", properties); Thread.sleep(2000); } 复制代码
##签收模式-手工签收 spring.rabbitmq.listener.simple.acknowledge-mode=manual ##设置监听限制:最大10,默认5 spring.rabbitmq.listener.simple.concurrency=5 spring.rabbitmq.listener.simple.max-concurrency=10
首先配置手工确认模式,用于ACK的手工处理,这样我们可以保证消息的可靠性送达,或者再消费端消费失败的时候可以做到重回队列(不建议)、根据业务记录日志等处理。
可以设置消费端的监听个数和最大个数,用于监控消费端的并发情况

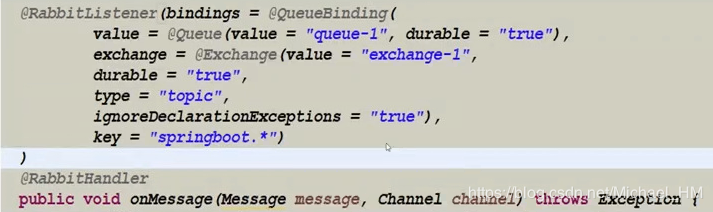

比如在方法onMessage上加@RabbitListener注解,同时需要加另外一个注解@RabbitHandler,代码被消费者监听。
建立绑定,在Value上写上队列,设置Exchange,是否持久化,设置Exchange的类型、表达式设置为true以及路由key。通过这种简单的方式,就可以完成之前很复杂的代码逻辑。同时建议将配置放入到配置文件中,动态获取。 如果mq中没有相应的队列、Exchange等,注解声明也可以创建它们 ,大家可以自行测试!
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.cp</groupId> <artifactId>springboot-consumer</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>springboot-consumer</name> <description>springboot-consumer</description> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.0.2.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-amqp</artifactId> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project> 复制代码
@Component public class RabbitReceiver { @RabbitListener(bindings = @QueueBinding( value = @Queue(value = "queue-1", durable="true"), exchange = @Exchange(value = "exchange-1", durable="true", type= "topic", ignoreDeclarationExceptions = "true"), key = "springboot.*" ) ) @RabbitHandler public void onMessage(Message message, Channel channel) throws Exception { System.err.println("--------------------------------------"); System.err.println("消费端Payload: " + message.getPayload()); Long deliveryTag = (Long)message.getHeaders().get(AmqpHeaders.DELIVERY_TAG); //手工ACK,获取deliveryTag channel.basicAck(deliveryTag, false); } } 复制代码
spring.rabbitmq.addresses=localhost:5672 spring.rabbitmq.username=user_cp spring.rabbitmq.password=123456 spring.rabbitmq.virtual-host=/vhost_cp spring.rabbitmq.connection-timeout=15000 spring.rabbitmq.listener.simple.acknowledge-mode=manual spring.rabbitmq.listener.simple.concurrency=5 spring.rabbitmq.listener.simple.max-concurrency=10 复制代码

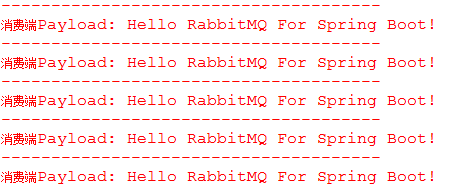

运行Application,查看之前在生产端发送的消息,是否能被消费。
这里之前由于我测试的时候多发了消息,所以消费的时候会有这么多。
@Payload:指定具体的消息体Body。 @Headers: 获取Headers。
1、先定义一个Order对象
public class Order implements Serializable { private String id; private String name; public Order() { } public Order(String id, String name) { super(); this.id = id; this.name = name; } public String getId() { return id; } public void setId(String id) { this.id = id; } public String getName() { return name; } public void setName(String name) { this.name = name; } } 复制代码
注意:我们在传输对象的时候,必须序列化。否则会传输失败。
2、RabbitReceiver添加监听
/** * * spring.rabbitmq.listener.order.queue.name=queue-2 spring.rabbitmq.listener.order.queue.durable=true spring.rabbitmq.listener.order.exchange.name=exchange-2 spring.rabbitmq.listener.order.exchange.durable=true spring.rabbitmq.listener.order.exchange.type=topic spring.rabbitmq.listener.order.exchange.ignoreDeclarationExceptions=true spring.rabbitmq.listener.order.key=springboot.* * @param order * @param channel * @param headers * @throws Exception */ @RabbitListener(bindings = @QueueBinding( value = @Queue(value = "${spring.rabbitmq.listener.order.queue.name}", durable="${spring.rabbitmq.listener.order.queue.durable}"), exchange = @Exchange(value = "${spring.rabbitmq.listener.order.exchange.name}", durable="${spring.rabbitmq.listener.order.exchange.durable}", type= "${spring.rabbitmq.listener.order.exchange.type}", ignoreDeclarationExceptions = "${spring.rabbitmq.listener.order.exchange.ignoreDeclarationExceptions}"), key = "${spring.rabbitmq.listener.order.key}" ) ) @RabbitHandler public void onOrderMessage(@Payload com.cp.springboot.entity.Order order, Channel channel, @Headers Map<String, Object> headers) throws Exception { System.err.println("--------------------------------------"); System.err.println("消费端order: " + order.getId()); Long deliveryTag = (Long)headers.get(AmqpHeaders.DELIVERY_TAG); //手工ACK channel.basicAck(deliveryTag, false); } 复制代码
已经将配置写入到了application.properties中,进行动态获取。也可以像我们公司一样放入到配置中心当中。例如:携程开源配置中心Apollo
3、application.properties
spring.rabbitmq.listener.order.queue.name=queue-2 spring.rabbitmq.listener.order.queue.durable=true spring.rabbitmq.listener.order.exchange.name=exchange-2 spring.rabbitmq.listener.order.exchange.durable=true spring.rabbitmq.listener.order.exchange.type=topic spring.rabbitmq.listener.order.exchange.ignoreDeclarationExceptions=true spring.rabbitmq.listener.order.key=springboot.* 复制代码
1、同样是一个Order对象,必须跟消费端的保持一致。
2、RabbitSender添加发送消息
//发送消息方法调用: 构建自定义对象消息 public void sendOrder(Order order) throws Exception { rabbitTemplate.setConfirmCallback(confirmCallback); rabbitTemplate.setReturnCallback(returnCallback); //id + 时间戳 全局唯一 CorrelationData correlationData = new CorrelationData("0987654321"); rabbitTemplate.convertAndSend("exchange-2", "springboot.def", order, correlationData); } 复制代码
3、添加测试方法
@Test public void testSender2() throws Exception { Order order = new Order("001", "第一个订单"); rabbitSender.sendOrder(order); //防止资源提前关闭,ConfirmCallback异步回调失败 Thread.sleep(2000); } 复制代码
运行testSender2()方法。
至此,RabbitMQ整合SpringBoot完毕,在实际工作中,使用场景也是差不多的。
