当Android遇到Jenkins
Jenkins是开源 CI&CD 软件领导者， 提供超过1000个插件来支持构建、部署、自动化， 满足任何项目的需要。
为什么需要Jenkins(DevOps)
我们日常开发一般流程: Commit -> Push -> Merge -> Build. 基本就算完成. 而Jenkins的存在就是代替这一些系列从而实现自动化,侧重在于后面几个阶段,我们可以做很多的事情. 自动化的过程是确保构建编译都是正确的,平时我们手动编译不同版本的时候难免可能会出错,有了它可以降低编译错误,提高构建速度. 然而一般我们Jenkins都是需要配合Docker来完成的,所以需要具备一定的Docker的基础与了解. 文末有Github地址,共享了DockerFile及JenkinsFile. Why Pipeline?
有Jenkins在Android能实现什么:
- 当push一个commit到服务器,将构建结果提交到MR/PR上(MR/PR存在)
- 当push一个commit到服务器,执行构建-->多渠道-->签名-->发布到各大市场-->通知相关人员
- 当push一个commit到服务器,在指定的branch做一些freestyle
- 当push一个commit到服务器,创建一个TAG
- ....

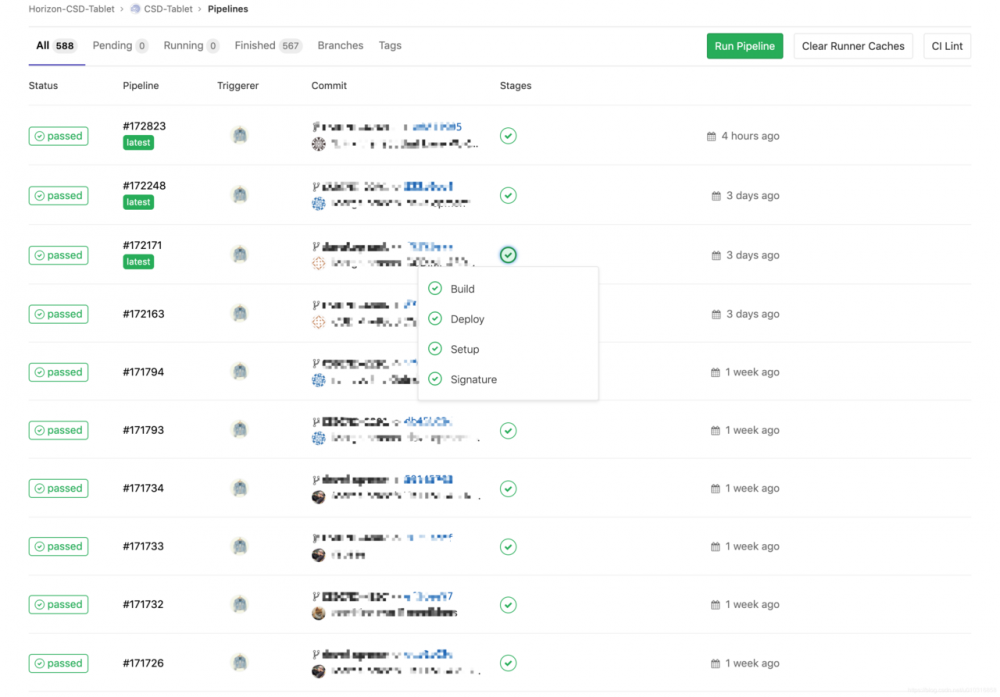

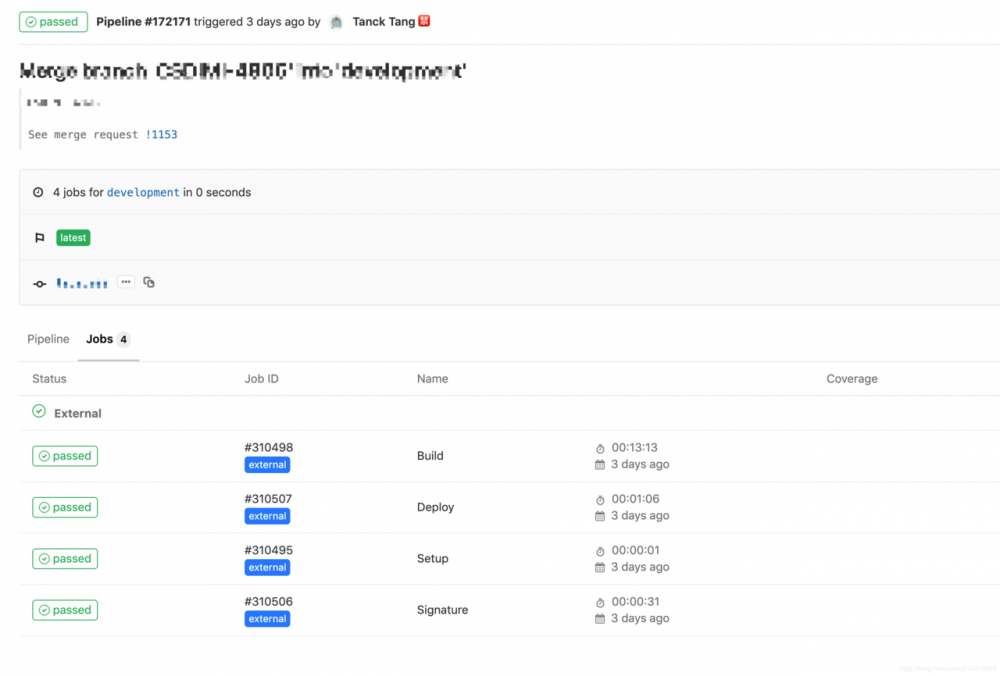

详细如图(Gitlab CI/CD):

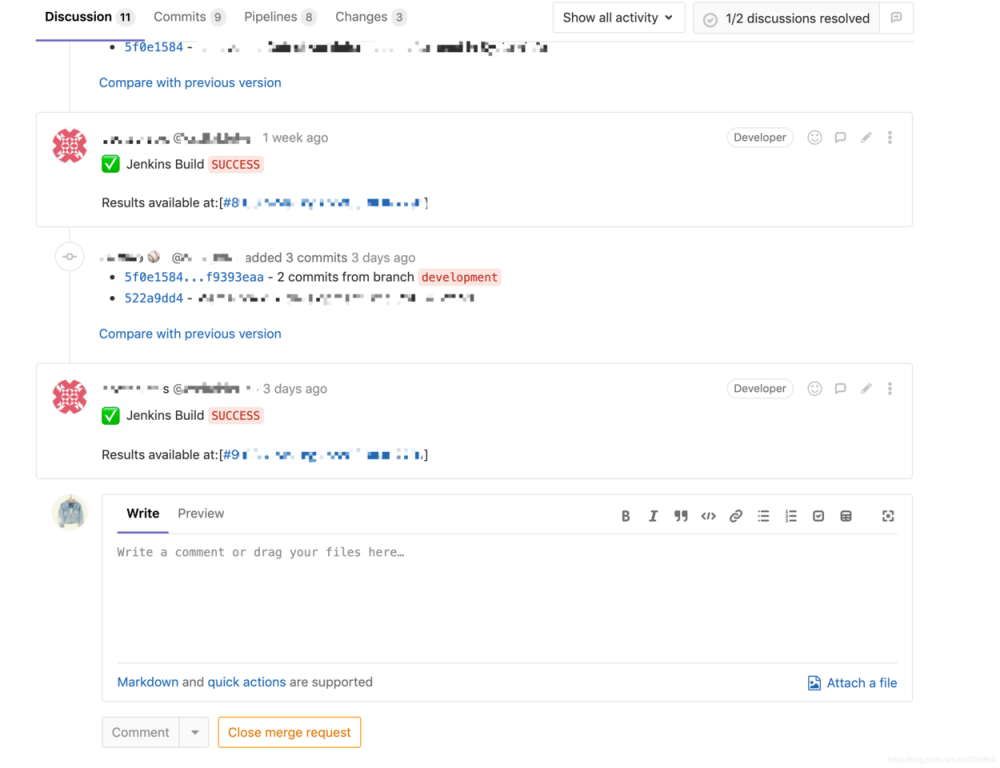

在MergeRequest/PullRequest中应用如下:
一个DevOps基本序列
一个DevOps的工作序列基本主要区分与Jenkins Server两种工作模式,这两种工作模式分为:
- Webhook的方式(在Gitlab/Github配置event触发后的地址,即当Gitlab/Gtihub产生 事件 会通过HTTP/HTTPS的方式将一个 事件 详细发送给Jenkins Service,随后Jenkins Service收到该消息会解析并做定义的处理);
- 轮训方式;(即无需侵入Gitlab/Github,由Jenkins定期轮训对应仓库的代码, 如果发生改变则立即出发构建. )
下面主要介绍一下以Webhook工作方式的时序图如下:
sequenceDiagram User ->> Gitlab/Github: push a commit Gitlab/Github-->>Jekins: push a message via webhook Jenkins -->> Jenkins: Sync with branchs and do a build with freestyle if there are changes Jenkins --x Gitlab/Github: Feedback some comments on MR or IM/EMAIL 复制代码
这将产生一个流程图。:
graph LR A(User) --Push a commit --> B(Gitlab/Github) B --Push a message via webhook --> C(Jenkins) 复制代码
构建一个的Android应用多分支步骤
-
配置一个Jenkins Server;(由于文章主要讲解 Jenkins脚本高级应用 ,所以还请网上搜索相关环境搭建)
-

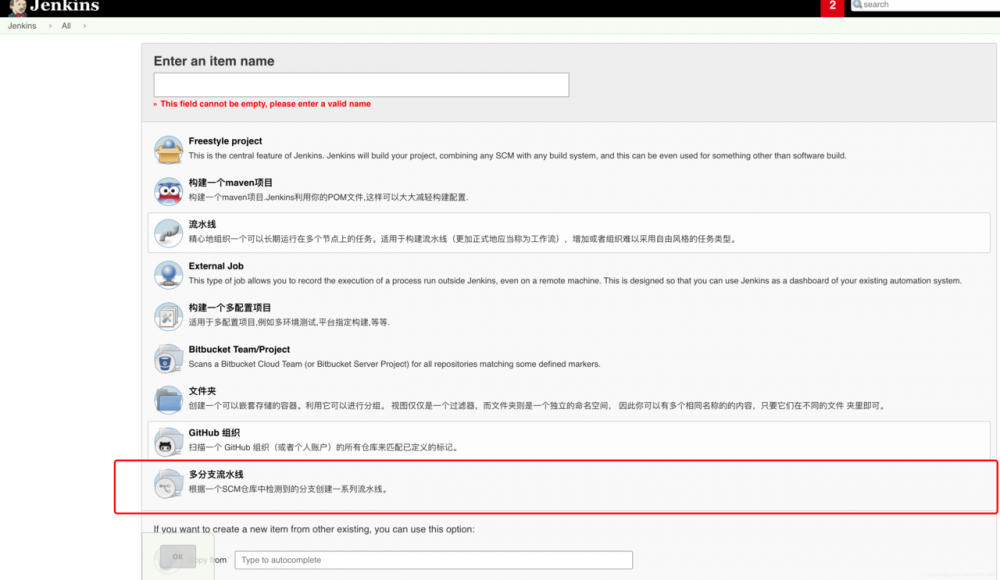

在Jenkins 里面创建一个应用如下图:
-
配置好对应的远程仓库地址后,我们需要 指定Jenkins脚本路径 如下:
-

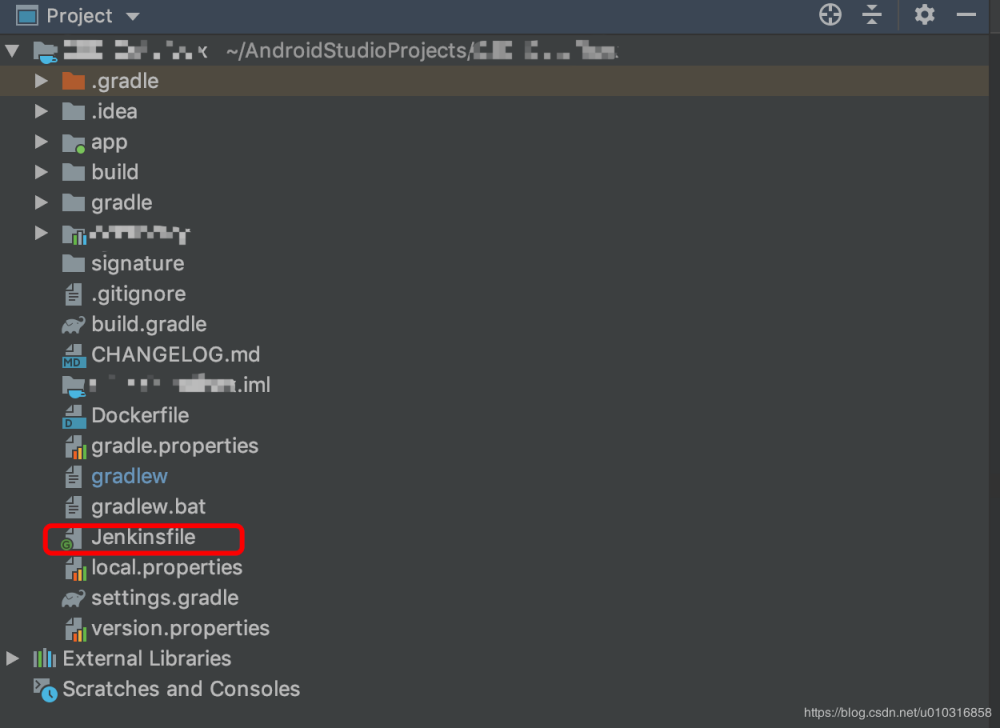

由于Jenkins配置的路径是在项目路径下,所以我们Android Studio也得配置在对应跟布局下:
-

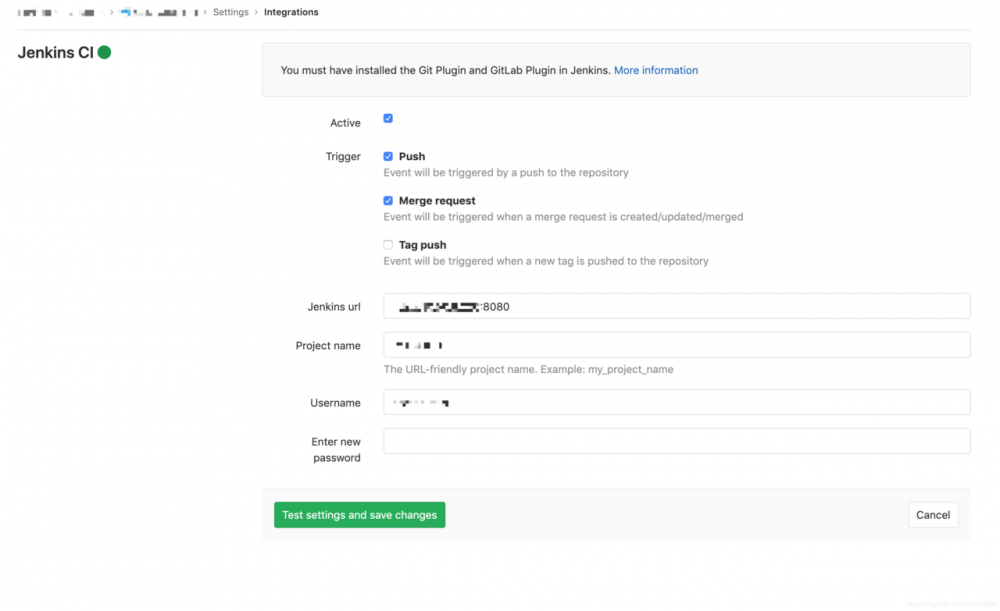

最后以Gitlab为例子配置Webhook如下:
所有的配置完毕后,接下来就是详解Jenkins脚本.
Jenkins脚本详解(直接声明的方式):
pipeline {
agent any
stages {
stage('Build') {
steps {
// Do the build with gradle../gradlew build
}
}
stage('Test') {
steps {
// Do some test script
}
}
stage('Deploy') {
steps {
// Deploy your project to other place
}
}
}
}
复制代码
高级特性详解:
- 想要提交comment在MR/PR上: 一般是通过调用Gitlab/Github开放的API来实现,以Gitlab为例:
/**
* Add the comment to gitlab on MR if the MR is exist and state is OPEN
*/
def addCommentToGitLabMR(String commentContent) {
branchHasMRID = sh(script: "curl --header /"PRIVATE-TOKEN: ${env.gitUserToken}/" ${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/merge_requests?source_branch=${env.BRANCH_NAME} | grep -o 'iid/":[^,]*' | head -n 1 | cut -b 6-", returnStdout: true).trim()
echo 'Current Branch has MR id : ' + branchHasMRID
if (branchHasMRID == '') {
echo "The id of MR doesn't exist on the gitlab. skip the comment on MR"
} else {
// TODO : Should be handled on first time.
TheMRState = sh(script: "curl --header /"PRIVATE-TOKEN: ${env.gitUserToken}/" ${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/merge_requests?source_branch=${env.BRANCH_NAME} | grep -o 'state/":[^,]*' | head -n 1 | cut -b 9-14", returnStdout: true).trim()
echo 'Current MR state is : ' + TheMRState
if (TheMRState == 'opened') {
sh "curl -d /"id=${XXPROJECT_ID}&merge_request_iid=${branchHasMRID}&body=${commentContent}/" --header /"PRIVATE-TOKEN: ${env.gitUserToken}/" ${GITLAB_SERVER_URL}/api/v4//projects/${XXPROJECT_ID}/merge_requests/${branchHasMRID}/notes"
} else {
echo 'The MR not is opened, skip the comment on MR'
}
}
}
复制代码

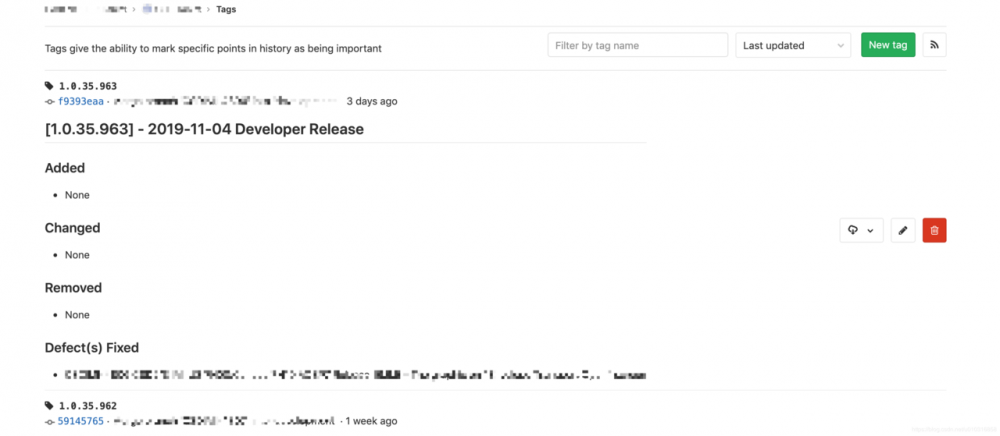

- 自动创建一个TAG且有CHANGELOG: 因为我们通过git tag创建的TAG一般是没有描述的,有时候比较难跟踪,所以我们可以调用Gitlab/Github API来创建一个TAG,效果如下:
def pushTag(String gitTagName, String gitTagContent) {
sh "curl -d /"id=${XXPROJECT_ID}&tag_name=${gitTagName}&ref=development&release_description=${gitTagContent}/" --header /"PRIVATE-TOKEN: ${env.gitUserToken}/" ${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/repository/tags"
}
复制代码
- 将Gradle 缓存共享给Docker,这样每次构建的时候就不会在Docker里面每次去下载依赖包:
environment {
GRADLE_CACHE = '/tmp/gradle-user-cache'
}
...
agent {
dockerfile {
filename 'Dockerfile'
// https://github.com/gradle/gradle/issues/851
args '-v $GRADLE_CACHE/.gradle:$HOME/.gradle --net=host'
}
}
复制代码
完整的JenkinsFile;
#!/usr/bin/env groovy
//This JenkinsFile is based on a declarative format
//https://jenkins.io/doc/book/pipeline/#declarative-versus-scripted-pipeline-syntax
def CSD_DEPLOY_BRANCH = 'development'
// Do not add the `def` for these fields
XXPROJECT_ID = 974
GITLAB_SERVER_URL = 'http://gitlab.com'// Or your server
pipeline {
// 默认代理用主机,意味着用Jenkins主机来运行一下块
agent any
options {
// 配置当前branch不支持同时构建,为了避免资源竞争,当一个新的commit到来,会进入排队如果之前的构建还在进行
disableConcurrentBuilds()
// 链接到Gitlab的服务器,用于访问Gitlab一些API
gitLabConnection('Jenkins_CI_CD')
}
environment {
// 配置缓存路径在主机
GRADLE_CACHE = '/tmp/gradle-user-cache'
}
stages {
// 初始化阶段
stage('Setup') {
steps {
// 将初始化阶段修改到这次commit即Gitlab会展示对应的UI
gitlabCommitStatus(name: 'Setup') {
// 通过SLACK工具推送一个通知
notifySlack('STARTED')
echo "Setup Stage Starting. Depending on the Docker cache this may take a few " +
"seconds to a couple of minutes."
echo "${env.BRANCH_NAME} is the branch. Subsequent steps may not run on branches that are not ${CSD_DEPLOY_BRANCH}."
script {
cacheFileExist = sh(script: "[ -d ${GRADLE_CACHE} ] && echo 'true' || echo 'false' ", returnStdout: true).trim()
echo 'Current cacheFile is exist : ' + cacheFileExist
// Make dir if not exist
if (cacheFileExist == 'false') sh "mkdir ${GRADLE_CACHE}/ || true"
}
}
}
}
// 构建阶段
stage('Build') {
agent {
dockerfile {
// 构建的时候指定一个DockerFile,该DockerFile有Android的构建环境
filename 'Dockerfile'
// https://github.com/gradle/gradle/issues/851
args '-v $GRADLE_CACHE/.gradle:$HOME/.gradle --net=host'
}
}
steps {
gitlabCommitStatus(name: 'Build') {
script {
echo "Build Stage Starting"
echo "Building all types (debug, release, etc.) with lint checking"
getGitAuthor()
if (env.BRANCH_NAME == CSD_DEPLOY_BRANCH) {
// TODO : Do some checks on your style
// https://docs.gradle.org/current/userguide/gradle_daemon.html
sh 'chmod +x gradlew'
// Try with the all build types.
sh "./gradlew build"
} else {
// https://docs.gradle.org/current/userguide/gradle_daemon.html
sh 'chmod +x gradlew'
// Try with the production build type.
sh "./gradlew compileReleaseJavaWithJavac"
}
}
}
/* Comment out the inner cache rsync logic
gitlabCommitStatus(name: 'Sync Gradle Cache') {
script {
if (env.BRANCH_NAME != CSD_DEPLOY_BRANCH) {
// TODO : The max cache file should be added.
echo 'Write updates to the Gradle cache back to the host'
// Write updates to the Gradle cache back to the host
// -W, --whole-file:
// With this option rsync's delta-transfer algorithm is not used and the whole file is sent as-is instead.
// The transfer may be faster if this option is used when the bandwidth between the source and
// destination machines is higher than the bandwidth to disk (especially when the lqdiskrq is actually a networked filesystem).
// This is the default when both the source and destination are specified as local paths.
sh "rsync -auW ${HOME}/.gradle/caches ${HOME}/.gradle/wrapper ${GRADLE_CACHE}/ || true"
} else {
echo 'Not on the Deploy branch , Skip write updates to the Gradle cache back to the host'
}
}
}*/
script {
// Only the development branch can be triggered
if (env.BRANCH_NAME == CSD_DEPLOY_BRANCH) {
gitlabCommitStatus(name: 'Signature') {
// signing the apks with the platform key
signAndroidApks(
keyStoreId: "platform",
keyAlias: "platform",
apksToSign: "**/*.apk",
archiveSignedApks: false,
skipZipalign: true
)
}
gitlabCommitStatus(name: 'Deploy') {
script {
echo "Debug finding apks"
// debug statement to show the signed apk's
sh 'find . -name "*.apk"'
// TODO : Deploy your apk to other place
//Specific deployment to Production environment
//echo "Deploying to Production environment"
//sh './gradlew app:publish -DbuildType=proCN'
}
}
} else {
echo 'Current branch of the build not on the development branch, Skip the next steps!'
}
}
}
// This post working on the docker. not on the jenkins of local
post {
// The workspace should be cleaned if the build is failure.
failure {
// notFailBuild : if clean failed that not tell Jenkins failed.
cleanWs notFailBuild: true
}
// The APKs should be deleted when the server is successfully built.
success {
script {
// Only the development branch can be deleted these APKs.
if (env.BRANCH_NAME == CSD_DEPLOY_BRANCH) {
cleanWs notFailBuild: true, patterns: [[pattern: '**/*.apk', type: 'INCLUDE']]
}
}
}
}
}
}
post {
always { deleteDir() }
failure {
addCommentToGitLabMR("//:negative_squared_cross_mark//: Jenkins Build //`FAILURE//` <br /><br /> Results available at:[[#${env.BUILD_NUMBER} ${env.JOB_NAME}](${env.BUILD_URL})]")
notifySlack('FAILED')
}
success {
addCommentToGitLabMR("//:white_check_mark//: Jenkins Build //`SUCCESS//` <br /><br /> Results available at:[[#${env.BUILD_NUMBER} ${env.JOB_NAME}](${env.BUILD_URL})]")
notifySlack('SUCCESS')
}
unstable { notifySlack('UNSTABLE') }
changed { notifySlack('CHANGED') }
}
}
def addCommentToGitLabMR(String commentContent) {
branchHasMRID = sh(script: "curl --header /"PRIVATE-TOKEN: ${env.gitTagPush}/" ${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/merge_requests?source_branch=${env.BRANCH_NAME} | grep -o 'iid/":[^,]*' | head -n 1 | cut -b 6-", returnStdout: true).trim()
echo 'Current Branch has MR id : ' + branchHasMRID
if (branchHasMRID == '') {
echo "The id of MR doesn't exist on the gitlab. skip the comment on MR"
} else {
// TODO : Should be handled on first time.
TheMRState = sh(script: "curl --header /"PRIVATE-TOKEN: ${env.gitTagPush}/" ${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/merge_requests?source_branch=${env.BRANCH_NAME} | grep -o 'state/":[^,]*' | head -n 1 | cut -b 9-14", returnStdout: true).trim()
echo 'Current MR state is : ' + TheMRState
if (TheMRState == 'opened') {
sh "curl -d /"id=${XXPROJECT_ID}&merge_request_iid=${branchHasMRID}&body=${commentContent}/" --header /"PRIVATE-TOKEN: ${env.gitTagPush}/" ${GITLAB_SERVER_URL}/api/v4//projects/${XXPROJECT_ID}/merge_requests/${branchHasMRID}/notes"
} else {
echo 'The MR not is opened, skip the comment on MR'
}
}
}
def pushTag(String gitTagName, String gitTagContent) {
sh "curl -d /"id=${XXPROJECT_ID}&tag_name=${gitTagName}&ref=development&release_description=${gitTagContent}/" --header /"PRIVATE-TOKEN: ${env.gitTagPush}/" ${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/repository/tags"
}
//Helper methods
//TODO Probably can extract this into a JenkinsFile shared library
def getGitAuthor() {
def commitSHA = sh(returnStdout: true, script: 'git rev-parse HEAD')
author = sh(returnStdout: true, script: "git --no-pager show -s --format='%an' ${commitSHA}").trim()
echo "Commit author: " + author
}
def notifySlack(String buildStatus = 'STARTED') {
// Build status of null means success.
buildStatus = buildStatus ?: 'SUCCESS'
def color
if (buildStatus == 'STARTED') {
color = '#D4DADF'
} else if (buildStatus == 'SUCCESS') {
color = 'good'
} else if (buildStatus == 'UNSTABLE' || buildStatus == 'CHANGED') {
color = 'warning'
} else {
color = 'danger'
}
def msg = "${buildStatus}: `${env.JOB_NAME}` #${env.BUILD_NUMBER}:/n${env.BUILD_URL}"
slackSend(color: color, message: msg)
}
复制代码
DockerFile支持Android构建环境(包含JNI,API:26.0.3+)及JenkinsFile开源在Github: JenkinsWithDockerInAndroid
正文到此结束
