20、springcloud如何使用spring-cache

学了springcloud如何操作数据库进行增删改查,又学了springcloud如何操作reids把数据存储到redis。今天结合数据库操作和reids操作,来看看如何使用SpringCache。SpringCache提供了基于注解的缓存配置方法。它本质上不是一个具体的缓存实现方案(例如EHCache),而是一个对缓存使用的抽象和封装,通过在已有代码中打上几个预定义的注释,就可以实现希望达到的缓存效果。SpringCache支持跟第三方缓存例如EHCache、Redis集成;另外也提供了开箱即用的默认实现,可以直接拿来使用。SpringCache支持使用SpEL(Spring Expression Language)来定义缓存的key和各种condition,因此具备相当的灵活性,并可以支持非常复杂的语义。

1、新建项目sc-redis-cache,对用的pom.xml文件如下

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>spring-cloud</groupId>
    <artifactId>sc-redis-cache</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>sc-redis-cache</name>
    <url>http://maven.apache.org</url>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.4.RELEASE</version>
    </parent>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Finchley.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

        </dependencies>
    </dependencyManagement>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-cache</artifactId>
        </dependency>

        <dependency>
            <groupId>com.zaxxer</groupId>
            <artifactId>HikariCP</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>6.0.3</version>
        </dependency>


        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.2</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

2、新建springboot启动类RedisCacheApplication.java

package sc.redis.cache;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cache.annotation.EnableCaching;

/**
 * 更多资源关注公众号: java乐园
 *
 * @author Administrator
 *
 */
@SpringBootApplication
@EnableCaching // 启动缓存
@MapperScan(basePackages="sc.redis.cache.dao")
public class RedisCacheApplication {

    public static void main(String[] args) {
        SpringApplication.run(RedisCacheApplication.class, args);
    }

}

备注:@MapperScan(basePackages="sc.redis.cache.dao")该注解的basePackages一定是DAO所在包最终报名。

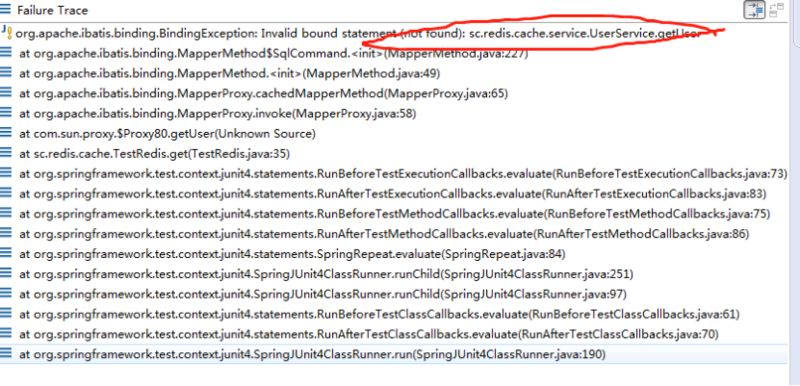

如果写成@MapperScan(basePackages="sc.redis.cache ")这样在测试中将报错:

20、springcloud如何使用spring-cache

3、新建配置文件application.yml

server:
  port: 9003

spring:
  application:
    name: sc-redis-cache
  datasource:
    driverClassName: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/sc?serverTimezone=UTC&useUnicode=true&characterEncoding=UTF-8
    username: root
    password: root
    type: com.zaxxer.hikari.HikariDataSource
    hikari:
      minimum-idle: 5
      maximum-pool-size: 15
      auto-commit: true
      idle-timeout: 30000
      pool-name: DatebookHikariCP
      max-lifetime: 1800000
      connection-timeout: 30000
      connection-test-query: SELECT 1
  cache:
    type: REDIS
    redis:
      timeToLive: 200000 #缓存超时时间ms
      cache-null-values: false #是否缓存空值
  redis:
    host: 127.0.0.1
    password:
    port: 6379
    timeout: 10000 # 连接超时时间(毫秒)
    database: 0 # Redis默认情况下有16个分片,这里配置具体使用的分片,默认是0
    lettuce:
      pool:
        max-active: 8 # 连接池最大连接数(使用负值表示没有限制) 默认 8
        max-wait: -1 # 连接池最大阻塞等待时间(使用负值表示没有限制) 默认 -1
        max-idle: 8 # 连接池中的最大空闲连接 默认 8
        min-idle: 0 # 连接池中的最小空闲连接 默认 0

logging:
  level:
    sc.redis.cache.dao: debug

备注:配置文件中有连接数据库的配置信息和连接redis的配置信息,同时配置了打印sql语句的日志级别

4、新建自定义reids序列化方式RedisCacheSerializeConfiguration.java类

package sc.redis.cache.config;

import java.time.Duration;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.cache.RedisCacheConfiguration;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.RedisSerializationContext;
import org.springframework.data.redis.serializer.RedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

@Configuration
public class RedisCacheSerializeConfiguration {

//    /**
//     *二选一
//     * 设置 redis 数据默认过期时间 设置@cacheable 序列化方式
//     *
//     * @return
//     */
//    @Bean
//    public RedisCacheConfiguration redisCacheConfiguration() {
//        RedisCacheConfiguration configuration = RedisCacheConfiguration.defaultCacheConfig();
//        configuration = configuration.serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(valueSerializer()))
//                .entryTtl(Duration.ofDays(30));
//        configuration.serializeKeysWith(RedisSerializationContext.SerializationPair.fromSerializer(keySerializer()));
//        return configuration;
//    }

    /**
     * 二选一
     * 设置 redis 数据默认过期时间 设置@cacheable 序列化方式
     *
     * @param connectionFactory
     * @return
     */
    @Bean
    public RedisCacheManager cacheManager(RedisConnectionFactory connectionFactory) {
        RedisCacheConfiguration config = RedisCacheConfiguration.defaultCacheConfig().entryTtl(Duration.ofDays(30))
                .serializeKeysWith(RedisSerializationContext.SerializationPair.fromSerializer(keySerializer()))
                .serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(valueSerializer()))
                .disableCachingNullValues();
        RedisCacheManager redisCacheManager = RedisCacheManager.builder(connectionFactory).cacheDefaults(config)
                .transactionAware().build();
        System.out.println("自定义RedisCacheManager加载完成");
        return redisCacheManager;
    }

    private RedisSerializer<String> keySerializer() {
        return new StringRedisSerializer();
    }

    private RedisSerializer<Object> valueSerializer() {
        return new GenericJackson2JsonRedisSerializer();
    }

}

5、启动相关类请参照源码,目录结构如下

20、springcloud如何使用spring-cache

6、编写单元测试类

package sc.redis.cache;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import sc.redis.cache.model.User;
import sc.redis.cache.service.UserService;

@RunWith(SpringRunner.class)
@SpringBootTest
public class TestRedis {

    private static final Logger logger = LoggerFactory.getLogger(TestRedis.class);

    @Autowired
    private UserService userService;

    @Test
    public void add() {
        User u = new User();
        u.setId(4L);
        u.setUserName("huangjinjin");
        u.setPosition("cto");
        u.setAge(24);
        userService.addUser(u);

    }

    @Test
    public void get() {
        User u =userService.getUser(4L);
        logger.debug("userName = "+ u.getUserName());
    }
}

7、进行单元测试

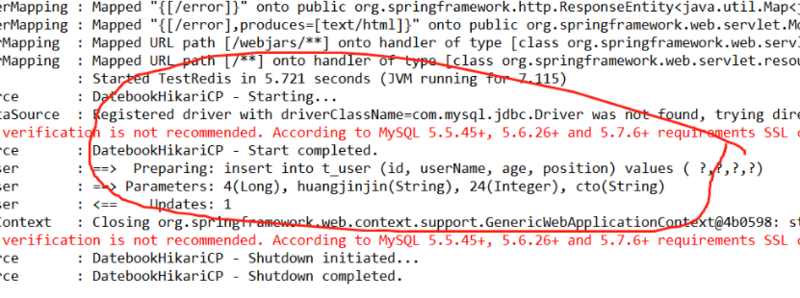

运行add方法添加一条数据到数据库:

日志:

20、springcloud如何使用spring-cache

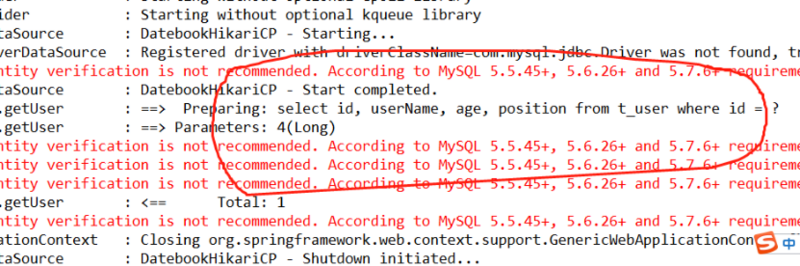

第一次运行get方法:

日志:

20、springcloud如何使用spring-cache

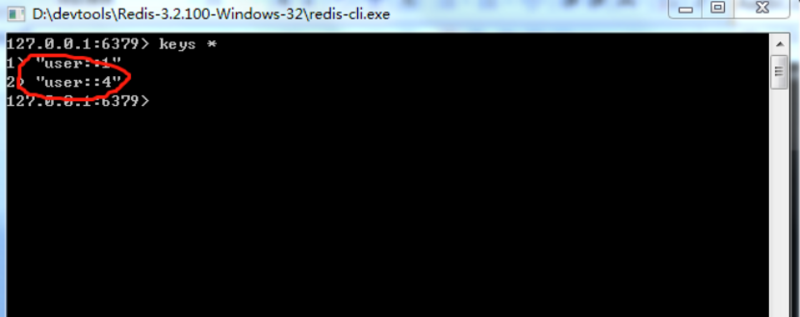

使用redis-cli查看redis,数据已经插入缓存

20、springcloud如何使用spring-cache

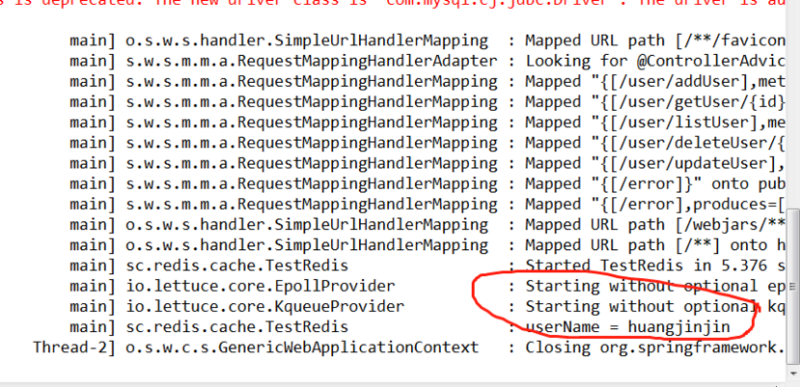

第二次运行get方法:

日志:

20、springcloud如何使用spring-cache

20、springcloud如何使用spring-cache

发现没有打印任何sql语句,说明数据是从redis获取的,没有去数据库查询数据。

原文  https://segmentfault.com/a/1190000022344928
