Spring中bean name重复的问题
org.apache.ibatis.binding.BindingException: Invalid bound statement (not found): com.atour.oss.dao.mapper.OssFileMapper.insert at org.apache.ibatis.binding.MapperMethod$SqlCommand.<init>(MapperMethod.java:227) at org.apache.ibatis.binding.MapperMethod.<init>(MapperMethod.java:49) at org.apache.ibatis.binding.MapperProxy.cachedMapperMethod(MapperProxy.java:65) at org.apache.ibatis.binding.MapperProxy.invoke(MapperProxy.java:58) at com.sun.proxy.$Proxy188.insert(Unknown Source)
一个同事新加了一个数据源，然后老的数据源居然报错了，他说没有改动老的。翻了下代码，最后发现是 不加思索地复制粘贴 埋的坑，老的代码：
@Configuration
@MapperScan(basePackages = MapperConfig.PACKAGE, sqlSessionFactoryRef = "sessionFactory")
public class MapperConfig {
/**
* 包目录
*/
static final String PACKAGE = "com.atour.oss.dao.mapper";
/**
* 类目录
*/
private static final String TYPE_ALIASES_PACKAGE = "com.atour.oss.dao.entity";
/**
* mapper所在目录
*/
private static final String MAPPER_LOCATION = "classpath*:mapper/oss/*.xml";
/**
* 参数配置
*
* @param dataSource 数据库信息
* @param resource 配置文件
* @return SqlSessionFactory
*/
@Bean(name = "sessionFactory")
@Primary
public SqlSessionFactory invitationSessionFactory(@Qualifier("dataSource") DataSource dataSource,
@Qualifier("mybatisConf") Resource resource) throws Exception {
final SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
sqlSessionFactoryBean.setDataSource(dataSource);
Resource[] mapperLocations = new PathMatchingResourcePatternResolver().getResources(MAPPER_LOCATION);
sqlSessionFactoryBean.setMapperLocations(mapperLocations);
sqlSessionFactoryBean.setConfigLocation(resource);
sqlSessionFactoryBean.setTypeAliasesPackage(TYPE_ALIASES_PACKAGE);
return sqlSessionFactoryBean.getObject();
}
}
新加的代码:
@Configuration
@MapperScan(basePackages = NoticeIntelligenceMapperConfig.PACKAGE, sqlSessionFactoryRef = "sessionFactory")
public class NoticeIntelligenceMapperConfig {
/**
* 包目录
*/
static final String PACKAGE = "com.atour.noticeIntelligence.dao.mapper";
/**
* 类目录
*/
private static final String TYPE_ALIASES_PACKAGE = "com.atour.noticeIntelligence.dao.entity";
/**
* mapper所在目录
*/
private static final String MAPPER_LOCATION = "classpath*:mapper/noticeIntelligence/*Mapper.xml";
/**
* 参数配置
*
* @param dataSource 数据库信息
* @param resource 配置文件
* @return SqlSessionFactory
*/
@Bean(name = "sessionFactory")
@Primary
public SqlSessionFactory invitationSessionFactory(@Qualifier("dataSource") DataSource dataSource,
@Qualifier("mybatisConf") Resource resource) throws Exception {
final SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
sqlSessionFactoryBean.setDataSource(dataSource);
Resource[] mapperLocations = new PathMatchingResourcePatternResolver().getResources(MAPPER_LOCATION);
sqlSessionFactoryBean.setMapperLocations(mapperLocations);
sqlSessionFactoryBean.setConfigLocation(resource);
sqlSessionFactoryBean.setTypeAliasesPackage(TYPE_ALIASES_PACKAGE);
return sqlSessionFactoryBean.getObject();
}
}
注意看bean的名字，完全一模一样！！！:joy:，目测spring在查找引用的时候错乱了。值得注意的是，俩bean还都标记上了 @Primary 。
@Primary
No matter how you designate a primary bean, the effect is the same. You’re telling
Spring that it should choose the primary bean in the case of ambiguity.
This works well right up to the point where you designate two or more primary
beans.
Now there are two primary Dessert beans: Cake and IceCream. This poses a new ambi
guity issue. Just as Spring couldn’t choose among multiple candidate beans, it can’t
choose among multiple primary beans. Clearly, when more than one bean is desig
nated as primary, there are no primary candidates.
—— 《Spring in action 4th Edition》
Clearly, when more than one bean is designated as primary, there are no primary candidates
如果有多个 @Primary 注解的bean，那么就没有 primary 的candidate了；这里说的已经很明确了，但是没有说spring具体怎么处理的。毕竟上面的项目启动的时候也没有报 ambiguity 相关的异常。
MapperScan
MapperScan 是mybatis提供的注解，用来指定扫描dao层接口的目录和mapper文件所在的位置的注解，上面名字冲突的bean是通过下面的形式引入的：
@MapperScan(basePackages = NoticeIntelligenceMapperConfig.PACKAGE, sqlSessionFactoryRef = "sessionFactory")
看下源码：
// org.mybatis.spring.annotation.MapperScannerRegistrar#registerBeanDefinitions
/**
* {@inheritDoc}
*/
@Override
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
// 省略n行
scanner.setSqlSessionTemplateBeanName(annoAttrs.getString("sqlSessionTemplateRef"));
// 这里获取注解里对应的属性值
scanner.setSqlSessionFactoryBeanName(annoAttrs.getString("sqlSessionFactoryRef"));
List<String> basePackages = new ArrayList<String>();
for (String pkg : annoAttrs.getStringArray("value")) {
if (StringUtils.hasText(pkg)) {
basePackages.add(pkg);
}
}
for (String pkg : annoAttrs.getStringArray("basePackages")) {
if (StringUtils.hasText(pkg)) {
basePackages.add(pkg);
}
}
for (Class<?> clazz : annoAttrs.getClassArray("basePackageClasses")) {
basePackages.add(ClassUtils.getPackageName(clazz));
}
scanner.registerFilters();
scanner.doScan(StringUtils.toStringArray(basePackages));
}
找到对应属性使用的地方：
// org.mybatis.spring.mapper.ClassPathMapperScanner#processBeanDefinitions
private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
GenericBeanDefinition definition;
for (BeanDefinitionHolder holder : beanDefinitions) {
definition = (GenericBeanDefinition) holder.getBeanDefinition();
if (logger.isDebugEnabled()) {
logger.debug("Creating MapperFactoryBean with name '" + holder.getBeanName()
+ "' and '" + definition.getBeanClassName() + "' mapperInterface");
}
// the mapper interface is the original class of the bean
// but, the actual class of the bean is MapperFactoryBean
definition.getConstructorArgumentValues().addGenericArgumentValue(definition.getBeanClassName()); // issue #59
definition.setBeanClass(this.mapperFactoryBean.getClass());
definition.getPropertyValues().add("addToConfig", this.addToConfig);
boolean explicitFactoryUsed = false;
// 这里设置对应依赖的占位
if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
// 这里的RunTimeBean
definition.getPropertyValues().add("sqlSessionFactory", new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
explicitFactoryUsed = true;
} else if (this.sqlSessionFactory != null) {
definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
explicitFactoryUsed = true;
}
if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
if (explicitFactoryUsed) {
logger.warn("Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
}
definition.getPropertyValues().add("sqlSessionTemplate", new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
explicitFactoryUsed = true;
} else if (this.sqlSessionTemplate != null) {
if (explicitFactoryUsed) {
logger.warn("Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
}
definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
explicitFactoryUsed = true;
}
if (!explicitFactoryUsed) {
if (logger.isDebugEnabled()) {
logger.debug("Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
}
definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
}
}
}
最终使用的是 RuntimeBeanReference 。
RuntimeBeanReference
@Primary 注解最终转换成了bean的 isPrimary 属性，搜代码可以大概知道是在 DefaultListableBeanFactory 中处理的：
// org.springframework.beans.factory.support.DefaultListableBeanFactory#determinePrimaryCandidate
/**
* Determine the primary candidate in the given set of beans.
* @param candidates a Map of candidate names and candidate instances
* (or candidate classes if not created yet) that match the required type
* @param requiredType the target dependency type to match against
* @return the name of the primary candidate, or {@code null} if none found
* @see #isPrimary(String, Object)
*/
@Nullable
protected String determinePrimaryCandidate(Map<String, Object> candidates, Class<?> requiredType) {
String primaryBeanName = null;
for (Map.Entry<String, Object> entry : candidates.entrySet()) {
String candidateBeanName = entry.getKey();
Object beanInstance = entry.getValue();
if (isPrimary(candidateBeanName, beanInstance)) {
if (primaryBeanName != null) {
boolean candidateLocal = containsBeanDefinition(candidateBeanName);
boolean primaryLocal = containsBeanDefinition(primaryBeanName);
if (candidateLocal && primaryLocal) {
throw new NoUniqueBeanDefinitionException(requiredType, candidates.size(),
"more than one 'primary' bean found among candidates: " + candidates.keySet());
}
else if (candidateLocal) {
primaryBeanName = candidateBeanName;
}
}
else {
primaryBeanName = candidateBeanName;
}
}
}
return primaryBeanName;
}
但是这里抛异常了，应该不是这里
首先是信息解析，即将属性定义中的值进行解析，如RuntimeBeanReference解析成引用的Bean对象，这里会进行级联获取bean信息，并追加depend信息。这一步只是解析。
原来在这里：
// org.springframework.beans.factory.support.BeanDefinitionValueResolver#resolveValueIfNecessary
/**
* Given a PropertyValue, return a value, resolving any references to other
* beans in the factory if necessary. The value could be:
* <li>A BeanDefinition, which leads to the creation of a corresponding
* new bean instance. Singleton flags and names of such "inner beans"
* are always ignored: Inner beans are anonymous prototypes.
* <li>A RuntimeBeanReference, which must be resolved.
* <li>A ManagedList. This is a special collection that may contain
* RuntimeBeanReferences or Collections that will need to be resolved.
* <li>A ManagedSet. May also contain RuntimeBeanReferences or
* Collections that will need to be resolved.
* <li>A ManagedMap. In this case the value may be a RuntimeBeanReference
* or Collection that will need to be resolved.
* <li>An ordinary object or {@code null}, in which case it's left alone.
* @param argName the name of the argument that the value is defined for
* @param value the value object to resolve
* @return the resolved object
*/
@Nullable

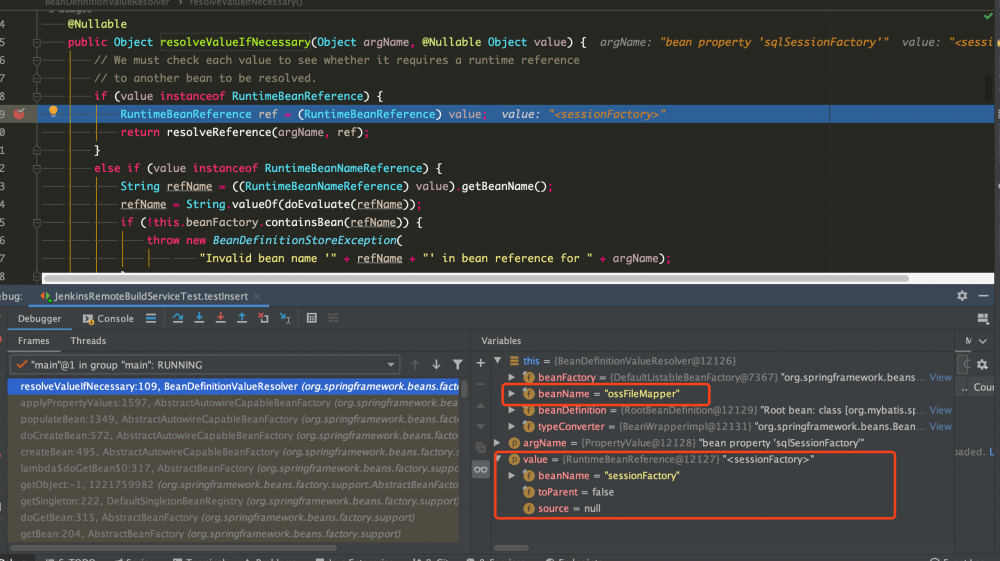

public Object resolveValueIfNecessary(Object argName, @Nullable Object value) {
// We must check each value to see whether it requires a runtime reference
// to another bean to be resolved.
if (value instanceof RuntimeBeanReference) {
// 在这里处理的！！！
RuntimeBeanReference ref = (RuntimeBeanReference) value;
return resolveReference(argName, ref);
}
else if (value instanceof RuntimeBeanNameReference) {
String refName = ((RuntimeBeanNameReference) value).getBeanName();
refName = String.valueOf(doEvaluate(refName));
if (!this.beanFactory.containsBean(refName)) {
throw new BeanDefinitionStoreException(
"Invalid bean name '" + refName + "' in bean reference for " + argName);
}
return refName;
}
else if (value instanceof BeanDefinitionHolder) {
// Resolve BeanDefinitionHolder: contains BeanDefinition with name and aliases.
BeanDefinitionHolder bdHolder = (BeanDefinitionHolder) value;
return resolveInnerBean(argName, bdHolder.getBeanName(), bdHolder.getBeanDefinition());
}
else if (value instanceof BeanDefinition) {
// Resolve plain BeanDefinition, without contained name: use dummy name.
BeanDefinition bd = (BeanDefinition) value;
String innerBeanName = "(inner bean)" + BeanFactoryUtils.GENERATED_BEAN_NAME_SEPARATOR +
ObjectUtils.getIdentityHexString(bd);
return resolveInnerBean(argName, innerBeanName, bd);
}
else if (value instanceof ManagedArray) {
// May need to resolve contained runtime references.
ManagedArray array = (ManagedArray) value;
Class<?> elementType = array.resolvedElementType;
if (elementType == null) {
String elementTypeName = array.getElementTypeName();
if (StringUtils.hasText(elementTypeName)) {
try {
elementType = ClassUtils.forName(elementTypeName, this.beanFactory.getBeanClassLoader());
array.resolvedElementType = elementType;
}
catch (Throwable ex) {
// Improve the message by showing the context.
throw new BeanCreationException(
this.beanDefinition.getResourceDescription(), this.beanName,
"Error resolving array type for " + argName, ex);
}
}
else {
elementType = Object.class;
}
}
return resolveManagedArray(argName, (List<?>) value, elementType);
}
else if (value instanceof ManagedList) {
// May need to resolve contained runtime references.
return resolveManagedList(argName, (List<?>) value);
}
else if (value instanceof ManagedSet) {
// May need to resolve contained runtime references.
return resolveManagedSet(argName, (Set<?>) value);
}
else if (value instanceof ManagedMap) {
// May need to resolve contained runtime references.
return resolveManagedMap(argName, (Map<?, ?>) value);
}
else if (value instanceof ManagedProperties) {
Properties original = (Properties) value;
Properties copy = new Properties();
original.forEach((propKey, propValue) -> {
if (propKey instanceof TypedStringValue) {
propKey = evaluate((TypedStringValue) propKey);
}
if (propValue instanceof TypedStringValue) {
propValue = evaluate((TypedStringValue) propValue);
}
if (propKey == null || propValue == null) {
throw new BeanCreationException(
this.beanDefinition.getResourceDescription(), this.beanName,
"Error converting Properties key/value pair for " + argName + ": resolved to null");
}
copy.put(propKey, propValue);
});
return copy;
}
else if (value instanceof TypedStringValue) {
// Convert value to target type here.
TypedStringValue typedStringValue = (TypedStringValue) value;
Object valueObject = evaluate(typedStringValue);
try {
Class<?> resolvedTargetType = resolveTargetType(typedStringValue);
if (resolvedTargetType != null) {
return this.typeConverter.convertIfNecessary(valueObject, resolvedTargetType);
}
else {
return valueObject;
}
}
catch (Throwable ex) {
// Improve the message by showing the context.
throw new BeanCreationException(
this.beanDefinition.getResourceDescription(), this.beanName,
"Error converting typed String value for " + argName, ex);
}
}
else if (value instanceof NullBean) {
return null;
}
else {
return evaluate(value);
}
}

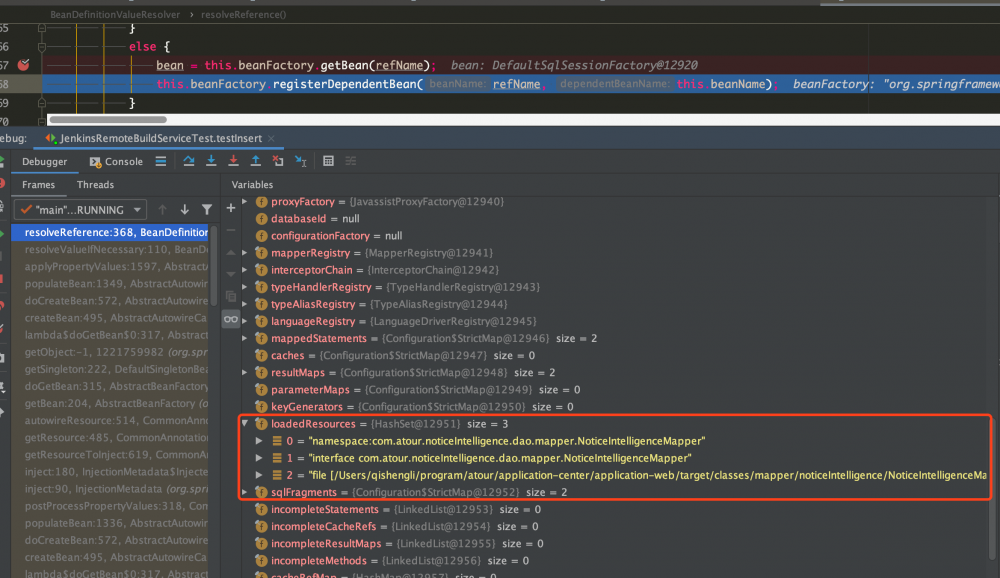

debug看了下，也确实是对的：
跟进去， 发现：

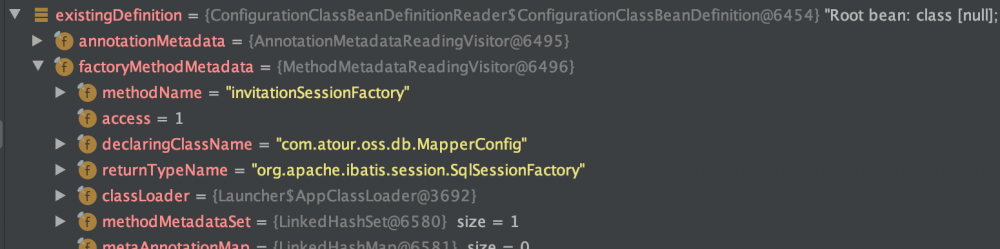

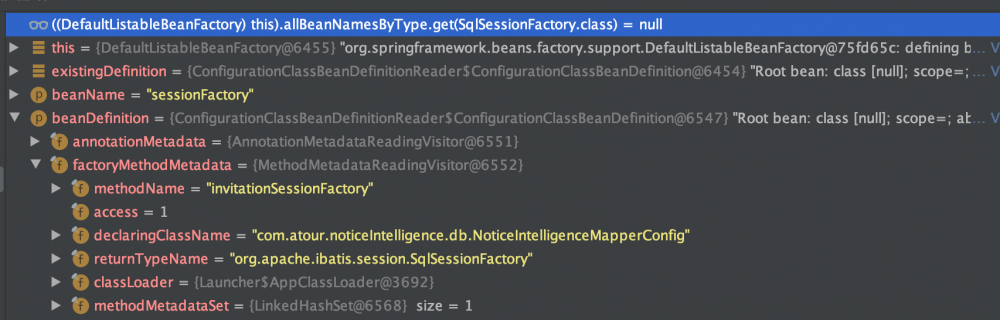

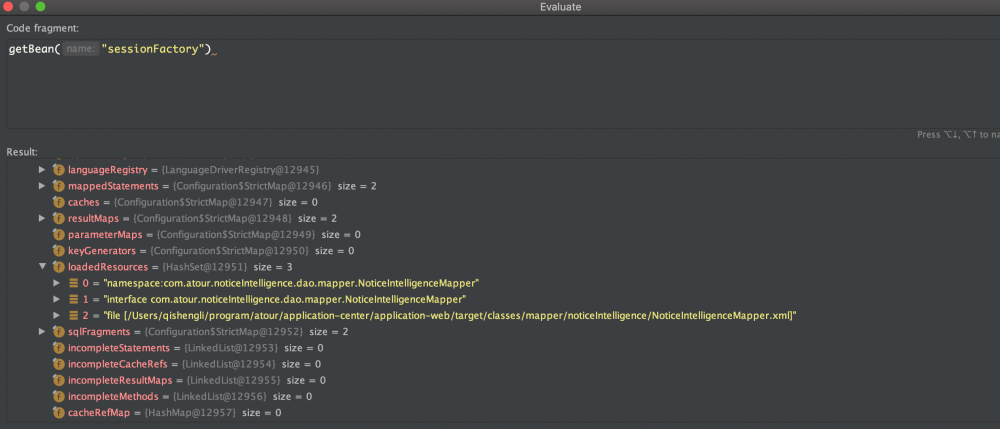

老的dao层关联的sessionFactory居然是新的（扫描路径不一样，这里只加载了新的mapper文件）。根据名称获取一把：
bean注册
//---------------------------------------------------------------------
// Implementation of BeanDefinitionRegistry interface
//---------------------------------------------------------------------
@Override
public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
throws BeanDefinitionStoreException {
Assert.hasText(beanName, "Bean name must not be empty");
Assert.notNull(beanDefinition, "BeanDefinition must not be null");
if (beanDefinition instanceof AbstractBeanDefinition) {
try {
((AbstractBeanDefinition) beanDefinition).validate();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Validation of bean definition failed", ex);
}
}
// 这里发生了覆盖
BeanDefinition existingDefinition = this.beanDefinitionMap.get(beanName);
if (existingDefinition != null) {
if (!isAllowBeanDefinitionOverriding()) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Cannot register bean definition [" + beanDefinition + "] for bean '" + beanName +
"': There is already [" + existingDefinition + "] bound.");
}
else if (existingDefinition.getRole() < beanDefinition.getRole()) {
// e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE
if (logger.isWarnEnabled()) {
logger.warn("Overriding user-defined bean definition for bean '" + beanName +
"' with a framework-generated bean definition: replacing [" +
existingDefinition + "] with [" + beanDefinition + "]");
}
}
else if (!beanDefinition.equals(existingDefinition)) {

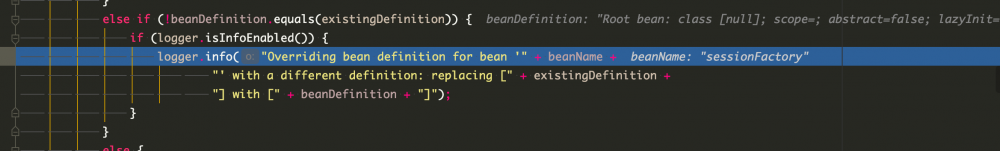

// 走到了这里，打印了override的日志，不过是info级别的
if (logger.isInfoEnabled()) {
logger.info("Overriding bean definition for bean '" + beanName +
"' with a different definition: replacing [" + existingDefinition +
"] with [" + beanDefinition + "]");
}
}
else {
if (logger.isDebugEnabled()) {
logger.debug("Overriding bean definition for bean '" + beanName +
"' with an equivalent definition: replacing [" + existingDefinition +
"] with [" + beanDefinition + "]");
}
}
this.beanDefinitionMap.put(beanName, beanDefinition);
}
else {
if (hasBeanCreationStarted()) {
// Cannot modify startup-time collection elements anymore (for stable iteration)
synchronized (this.beanDefinitionMap) {
this.beanDefinitionMap.put(beanName, beanDefinition);
List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1);
updatedDefinitions.addAll(this.beanDefinitionNames);
updatedDefinitions.add(beanName);
this.beanDefinitionNames = updatedDefinitions;
if (this.manualSingletonNames.contains(beanName)) {
Set<String> updatedSingletons = new LinkedHashSet<>(this.manualSingletonNames);
updatedSingletons.remove(beanName);
this.manualSingletonNames = updatedSingletons;
}
}
}
else {
// Still in startup registration phase
this.beanDefinitionMap.put(beanName, beanDefinition);
this.beanDefinitionNames.add(beanName);
this.manualSingletonNames.remove(beanName);
}
this.frozenBeanDefinitionNames = null;
}
if (existingDefinition != null || containsSingleton(beanName)) {
resetBeanDefinition(beanName);
}
}
结论

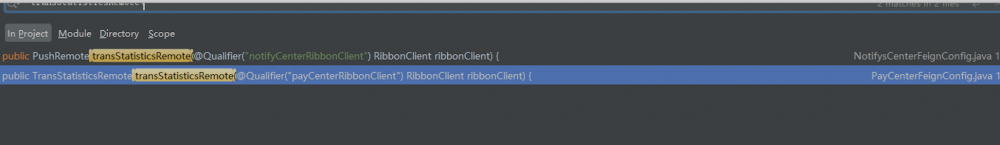

最终排查下来，发现只是bean的名称重复，导致覆盖；跟 @Primary 没有关系。在成文的过程中又一起 不加思索地复制粘贴 引起的故障
Caused by: org.springframework.beans.factory.NoSuchBeanDefinitionException: No qualifying bean of type 'com.atour.pay.api.remote.statistics.TransStatisticsRemote' available at org.springframework.beans.factory.support.DefaultListableBeanFactory.getBean(DefaultListableBeanFactory.java:347) at org.springframework.beans.factory.support.DefaultListableBeanFactory.getBean(DefaultListableBeanFactory.java:334) at org.springframework.context.support.AbstractApplicationContext.getBean(AbstractApplicationContext.java:1103)
还是需要保持敬畏之心，多去了解，不能无脑的粘贴。同时我们的基础建设不够完善，才导致了这么多复制粘贴的代码，道阻且长！
覆盖的规则可以参考， 聊聊Spring的bean覆盖（存在同名name/id问题），介绍Spring名称生成策略接口BeanNameGenerator【享学Spring】_Java_BAT的乌托邦-CSDN博客 , 这里简单贴下结论：
- 同一个配置文件内同名的
Bean， 以最上面定义的为准 - 不同配置文件中存在同名Bean，
后解析的配置文件会覆盖先解析的配置文件（配置文件的先后顺序其实会受到@Order来控制） - 通过
@ComponentScan扫描进来的优先级是最低的，原因就是它扫描进来的Bean定义是 最先 被注册的~ - 在不同容器内，即使
Bean名称相同，它们也是能够 和谐共存 的（想想父子容器）
参考
- Spring中获取一个bean的流程-2 – i flym
- 聊聊Spring的bean覆盖（存在同名name/id问题），介绍Spring名称生成策略接口BeanNameGenerator【享学Spring】_Java_BAT的乌托邦-CSDN博客
正文到此结束
- 本文标签： java cat SDN XML src Action iBATIS Statement spring remote 数据库 API Collections dataSource Property Collection synchronized tab description IDE 解析 final BeanDefinition IO equals rmi 源码 tar 数据 App 参数 message cache ArrayList 目录 classpath https UI CTO mybatis ACE sqlsession session tk ssl git 配置 CEO list 博客 mapper Lua HashSet apache struct map 代码 value http SqlSessionFactory bug Qualifier update ip sql GitHub key entity bean id Proxy
- 版权声明： 本文为互联网转载文章，出处已在文章中说明(部分除外)。如果侵权，请联系本站长删除，谢谢。
- 本文海报： 生成海报一 生成海报二
热门推荐
相关文章
近期评论
-
文章和留言都翻到11页了 没有OOM
-
-
朋友，翻页到11页，及以后，会出现OOM，无法访问
-
-
搞个gitee的项目
-
-
版本号是多少，你可以下载哪个代码仓库，jdk选1.8 直接跑就行
-
-
-
Loading...
![[HBLOG]公众号](https://www.liuhaihua.cn/img/qrcode_gzh.jpg)
