跟我一起学Knative(9)--集成Camel-K

在一般的大型IT组织中，很少有人会构建完全隔离的新应用程序，而该应用程序会与所有其他旧系统或新系统完全分离。许多实时用例要求新旧系统共享和交换数据。

Apache Camel是可帮助您集成系统的开源框架。 Apache Camel允许集成系统在它们之间生成和使用数据。它提供了300多个组件，其中包括与TCP，ActiveMQ，FTP， http://Salesforce.com 之类的源的集成连接器，这使得集成异构系统变得更加容易。企业集成模式（EIP）提供了许多常见集成问题的解决方案，Apache Camel通过其丰富的领域特定语言（DSL）提供了这些模式的实现，从而使开发人员更容易轻松地应用EIP。

Apache Camel-K旨在简化Apache Camel集成的编程和部署模型。通过使用Apache Camel-K，集成开发人员现在可以专注于使用Java，JavaScript，Groovy，XML或YAML中的Camel DSL编写集成，而无需担心如何打包和部署它们。

Camel K 工作原理

下图说明了Camel K的基本概念。

跟我一起学Knative(9)--集成Camel-K

实际情况是该脚本被包装到“集成”自定义资源中并添加到Kubernetes命名空间中。然后，Camel K Operator（基于operator SDK）将检测到新的Integration并将其具体化为正在运行的容器。通常，Camel K实现与Kubernetes部署的集成，但是在Knative上运行时，它使用自动缩放服务。

集成

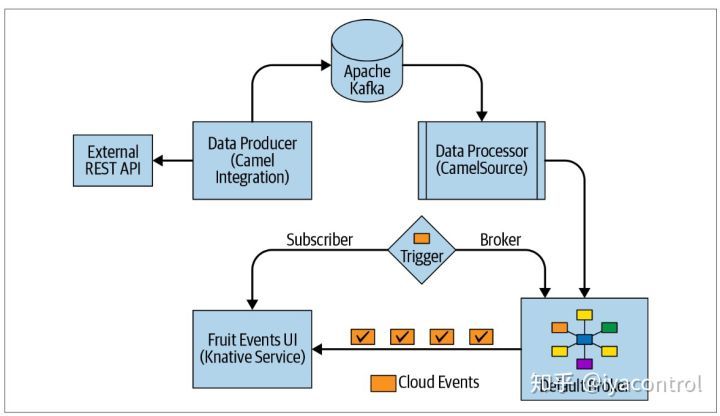

Camel-K 如何与Knative集成那？主要体现在下面两个方面。

  • 使用Camel-K，我们可以将Apache Camel路由部署为Knative Serving服务，即Apache Camel路由将自动扩展，并在不需要时自动缩小为零。
  • 使用Camel-K，我们还可以通过Apache Camel端点交换Knative Eventing事件；交换消息（事件有效负载）会自动转换为Cloud Events格式并与其他使用者交换。

跟我一起学Knative(9)--集成Camel-K

部署

1：部署Apache Camel K

在要运行Camel源的任何命名空间中安装Apache Camel K Operator。

与Camel来源兼容的首选版本是 Camel K v1.0.0-M4 。

Apache Camel K手册中提供了 安装说明 。文档包括针对常见Kubernetes环境（包括开发集群）的特定说明。

2：从“事件源” 发布页面 中的camel.yaml安装Camel源：

kubectl apply --filename camel.yaml

我们查看一下camel.yam的具体内容：

# Copyright 2019 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: knative-sources
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"

---
# Copyright 2019 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ServiceAccount
metadata:
  name: camel-controller-manager
  namespace: knative-sources
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"

---
# Copyright 2019 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: camel-controller
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
rules:
- apiGroups:
  - apps
  resources:
  - deployments
  verbs: &everything
  - get
  - list
  - watch
  - create
  - update
  - patch
  - delete
- apiGroups:
  - rbac.authorization.k8s.io
  resources:
  - clusterroles
  verbs:
  - list
- apiGroups:
  - ""
  resources:
  - events
  - configmaps
  verbs: *everything
- apiGroups:
  - sources.knative.dev
  resources:
  - camelsources
  verbs: *everything
- apiGroups:
  - sources.knative.dev
  resources:
  - camelsources/status
  - camelsources/finalizers
  verbs:
  - get
  - update
  - patch
- apiGroups:
  - camel.apache.org
  resources:
  - '*'
  verbs: *everything
---
# The role is needed for the aggregated role source-observer in knative-eventing to provide readonly access to "Sources".
# See https://github.com/knative/eventing/blob/master/config/200-source-observer-clusterrole.yaml.
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: eventing-contrib-camel-source-observer
  labels:
    eventing.knative.dev/release: devel
    duck.knative.dev/source: "true"
rules:
- apiGroups:
  - "sources.knative.dev"
  resources:
  - "camelsources"
  verbs:
  - get
  - list
  - watch

---
# Copyright 2019 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: camel-controller-rolebinding
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: camel-controller
subjects:
- kind: ServiceAccount
  name: camel-controller-manager
  namespace: knative-sources
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: eventing-sources-camel-controller-addressable-resolver
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
subjects:
- kind: ServiceAccount
  name: camel-controller-manager
  namespace: knative-sources
# An aggregated ClusterRole for all Addressable CRDs.
# Ref: https://github.com/knative/eventing/blob/master/config/200-addressable-resolvers-clusterrole.yaml
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: addressable-resolver

---
# Copyright 2019 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: camel-source-observer
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
    duck.knative.dev/source: "true"
rules:
- apiGroups:
  - sources.knative.dev
  resources:
  - camelsources
  verbs:
  - get
  - list
  - watch

---
# Copyright 2019 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
    eventing.knative.dev/source: "true"
    duck.knative.dev/source: "true"
    knative.dev/crd-install: "true"
  name: camelsources.sources.knative.dev
spec:
  group: sources.knative.dev
  names:
    categories:
    - all
    - knative
    - eventing
    - sources
    kind: CamelSource
    plural: camelsources
  scope: Namespaced
  subresources:
    status: {}
  additionalPrinterColumns:
  - name: Ready
    type: string
    JSONPath: '.status.conditions[?(@.type=="Ready")].status'
  - name: Reason
    type: string
    JSONPath: '.status.conditions[?(@.type=="Ready")].reason'
  - name: Age
    type: date
    JSONPath: .metadata.creationTimestamp
  validation:
    openAPIV3Schema:
      properties:
        apiVersion:
          type: string
        kind:
          type: string
        metadata:
          type: object
        spec:
          properties:
            sink:
              type: object
              description: "Reference to an object that will resolve to a domain name
                to use as the sink."
            ceOverrides:
              type: object
              description: "Defines overrides to control modifications of the event
                sent to the sink."
            source:
              properties:
                flow:
                  type: object
                integration:
                  type: object
              type: object
          required:
          - source
          type: object
        status:
          properties:
            conditions:
              items:
                properties:
                  lastTransitionTime:
                    type: string
                  message:
                    type: string
                  reason:
                    type: string
                  severity:
                    type: string
                  status:
                    type: string
                  type:
                    type: string
                required:
                - type
                - status
                type: object
              type: array
            sinkUri:
              type: string
          type: object
  version: v1alpha1

---
# Copyright 2019 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Service
metadata:
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
    control-plane: camel-controller-manager
  name: camel-controller-manager
  namespace: knative-sources
spec:
  selector:
    control-plane: camel-controller-manager
  ports:
  - name: https-camel
    port: 443

---
# Copyright 2019 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: apps/v1
kind: StatefulSet
metadata:
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
    control-plane: camel-controller-manager
  name: camel-controller-manager
  namespace: knative-sources
spec:
  selector:
    matchLabels:
      control-plane: camel-controller-manager
  serviceName: camel-controller-manager
  template:
    metadata:
      labels:
        control-plane: camel-controller-manager
    spec:
      containers:
      - image: gcr.io/knative-releases/knative.dev/eventing-contrib/camel/source/cmd/controller@sha256:a1dc668acca5be07e290131d7497eb5ad2f0fe44b53aaac210afbe3401d25158
        name: manager
        resources:
          requests:
            cpu: 20m
            memory: 20Mi
        env:
        - name: SYSTEM_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: CONFIG_LOGGING_NAME
          value: config-logging
        - name: CONFIG_OBSERVABILITY_NAME
          value: config-observability
        - name: CONFIG_LEADERELECTION_NAME
          value: config-leader-election-camel
        - name: METRICS_DOMAIN
          value: knative.dev/sources
      serviceAccount: camel-controller-manager
      terminationGracePeriodSeconds: 10

---
# Copyright 2020 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-logging
  namespace: knative-sources
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
data:
  # Common configuration for all Knative codebase
  zap-logger-config: |
    {
      "level": "info",
      "development": false,
      "outputPaths": ["stdout"],
      "errorOutputPaths": ["stderr"],
      "encoding": "json",
      "encoderConfig": {
        "timeKey": "ts",
        "levelKey": "level",
        "nameKey": "logger",
        "callerKey": "caller",
        "messageKey": "msg",
        "stacktraceKey": "stacktrace",
        "lineEnding": "",
        "levelEncoder": "",
        "timeEncoder": "iso8601",
        "durationEncoder": "",
        "callerEncoder": ""
      }
    }
  # Log level overrides
  # For all components changes are be picked up immediately.
  loglevel.controller: "info"
  loglevel.webhook: "info"

---
# Copyright 2020 The Knative Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     https://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: ConfigMap
metadata:
  name: config-observability
  namespace: knative-sources
  labels:
    contrib.eventing.knative.dev/release: "v0.14.1"
data:
  _example: |
    ################################
    #                              #
    #    EXAMPLE CONFIGURATION     #
    #                              #
    ################################

    # This block is not actually functional configuration,
    # but serves to illustrate the available configuration
    # options and document them in a way that is accessible
    # to users that `kubectl edit` this config map.
    #
    # These sample configuration options may be copied out of
    # this example block and unindented to be in the data block
    # to actually change the configuration.

    # metrics.backend-destination field specifies the system metrics destination.
    # It supports either prometheus (the default) or stackdriver.
    # Note: Using stackdriver will incur additional charges
    metrics.backend-destination: prometheus

    # metrics.request-metrics-backend-destination specifies the request metrics
    # destination. If non-empty, it enables queue proxy to send request metrics.
    # Currently supported values: prometheus, stackdriver.
    metrics.request-metrics-backend-destination: prometheus

    # metrics.stackdriver-project-id field specifies the stackdriver project ID. This
    # field is optional. When running on GCE, application default credentials will be
    # used if this field is not provided.
    metrics.stackdriver-project-id: "<your stackdriver project id>"

    # metrics.allow-stackdriver-custom-metrics indicates whether it is allowed to send metrics to
    # Stackdriver using "global" resource type and custom metric type if the
    # metrics are not supported by "knative_broker", "knative_trigger", and "knative_source" resource types.
    # Setting this flag to "true" could cause extra Stackdriver charge.
    # If metrics.backend-destination is not Stackdriver, this is ignored.
    metrics.allow-stackdriver-custom-metrics: "false"

    # profiling.enable indicates whether it is allowed to retrieve runtime profiling data from
    # the pods via an HTTP server in the format expected by the pprof visualization tool. When
    # enabled, the Knative Eventing pods expose the profiling data on an alternate HTTP port 8008.
    # The HTTP context root for profiling is then /debug/pprof/.
    profiling.enable: "false"

---

创建测试资源

所有CamelSource示例都使用一些测试资源来显示生成的事件。需要创建以下资源：

camel-test

部署 显示服务：

kubectl apply --filename display_resources.yaml

我们查看一下display_resources.yaml的内容：

# Channel for testing events.

apiVersion: messaging.knative.dev/v1alpha1
kind: InMemoryChannel
metadata:
  name: camel-test

---

# Subscription from the CamelSource's output Channel to the Knative Service below.

apiVersion: messaging.knative.dev/v1alpha1
kind: Subscription
metadata:
  name: camel-source-display
spec:
  channel:
    apiVersion: messaging.knative.dev/v1alpha1
    kind: InMemoryChannel
    name: camel-test
  subscriber:
    ref:
      apiVersion: serving.knative.dev/v1
      kind: Service
      name: camel-event-display

---

# This is a very simple Knative Service that prints the input event to its log.

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: camel-event-display
spec:
  template:
    spec:
      containers:
        - image: gcr.io/knative-releases/knative.dev/eventing-contrib/cmd/event_display@sha256:f4628e97a836c77ed38bd3b6fd3d0b06de4d5e7db6704772fe674d48b20bd477

总结

本文简单介绍了一下Camel K以及Camel K 如何与Knative的集成。

后续待对Camel K 有了一些实战经验，再详细些一些。

原文  https://segmentfault.com/a/1190000022670572
正文到此结束
所属分类： Java 编程技术

热门推荐

相关文章

阿里云首购8折
说给你听

本文目录
随机标签
书籍教程
springboot-demo Java入门教程 bootstrap3 CSS Apache基础教程 php ionic 教程 Python mysql教程 eclipse Ubuntu VPS系统配置 AngularJS 教程 MongoDB教程 Struts2教程 Redis教程 Spring教程 Git教程 Jenkins进阶系列 openfire参考指南 Java设计模式 HBase教程 Maven教程 hibernate教程 Docker 教程 memcached教程 Quartz指南 Hive教程 Ant教程 ANTLR教程 SpringCloud java实例教程 springcloud-demo XStream教程 Hazelcast教程 Elastic-Job-Lite 深入浅出MyBatis SVN教程 ibaties教程 rabittmq教程 solr教程 Hadoop教程 WebService CXF学习 JPA教程 ActiveMQ中文指南 java-demo Java内存模型 dubbo教程 python3-demo Linux入门视频教程
近期评论
  1. 1 Spring Cloud Consul实现选举机制
  2. 2 Spring Boot集成ShedLock实现分布式定时任务
  3. 3 利用oss进行数据库和网站图片备份
  4. 4 Spring Cloud Stream实现数据流处理
  5. 5 Python3访问MySQL数据库快速入门Demo
  6. 6 Github开源项目作者可以免费申请 JetBrains 全家桶
  7. 7 Spring Cloud Vault快速入门Demo
  8. 8 Spring Cloud Gateway快速入门Demo
  9. 9 Spring Cloud Contract快速入门Demo
  10. 10 Spring Cloud Consul快速入门Demo
网站信息
  • 文章总数：82,714 篇
  • 文件总数：284,287 个
  • 标签总数：2,393 个
  • 分类总数：85 个
  • 留言数量：2,560 条
  • 在线人数：616 人
  • 运行天数：4,409天
  • 最后更新：2024年11月22日01点
Loading...

其他链接

关于本站

本站定位：个人技术类博客

本站作用：写博客、记日志、闲聊扯淡鼓捣技术。

问题交流

[HBLOG]公众号 HBLOG HBLOG
